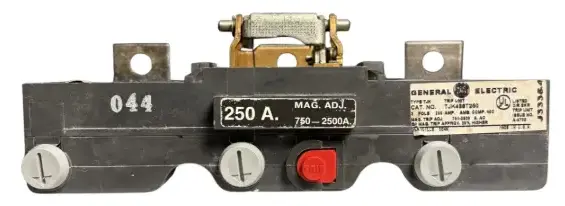

TJK436T250
GE 3-pole 250A trip unit, TJK436T250, 750–2500A adjustable mag trip.
Specifications
| part_number | TJK436T250 |
| product_type | Molded Case Circuit Breaker |
| manufacturer | General Electric |
| frame_type | TJK |
| amp_rating | 250 |
| number_of_poles | 3 |
| voltage_rating | 600 VAC |
| interrupting_rating | 65 kAIC at 480 VAC |
| mounting_style | Bolt-On |
| trip_unit | Thermal Magnetic |
| phase | 3 |
| frequency | 50/60 Hz |
| wire_range | 4-4/0 AWG |
| dimensions | 12.96 in x 6.00 in x 5.80 in |
| approvals | UL Listed, CSA Certified |
| application | Panelboard/Switchboard |
| special_features | Non-interchangeable Trip |
| terminal_type | Lug |
| standard | UL 489 |
