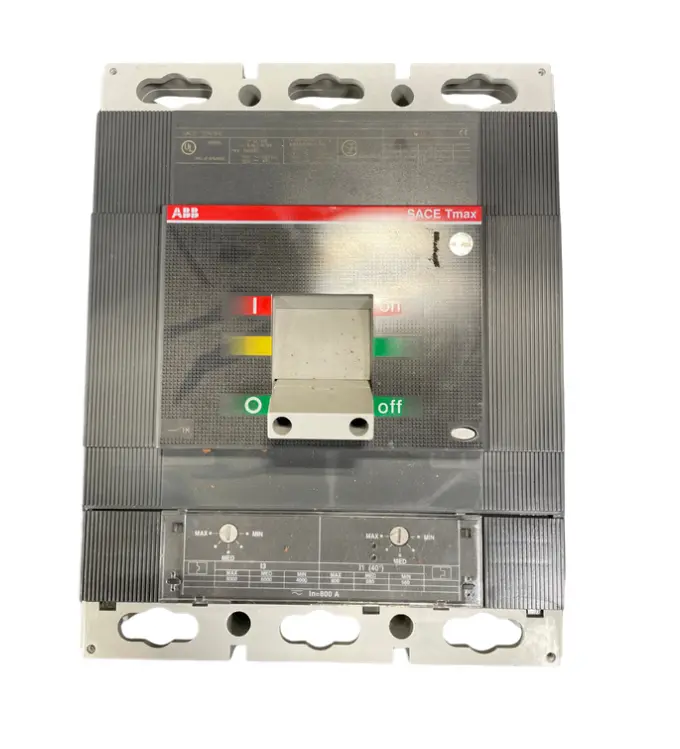

T6NQ600CW
ABB 600 A, 600 V THERMAL MAGNETIC BREAKER 3 P, 100 % RATED WITH PR222 LSI TRIP UNIT, 10.55H x 8.26W x 4.07D , 35 KAIC@ 480 V
Specifications
| part_number | T6NQ600CW |
| product_type | Circuit Breaker |
| manufacturer | ABB |
| series | Tmax XT |
| mounting_type | Panel Mount |
| current_rating | 600 A |
| voltage_rating | 600 V AC |
| number_of_poles | 3 |
| trip_unit_technology | Electronic |
| interrupting_rating | 65 kA @ 480 V AC |
| frame_size | T6 |
| certifications | UL, CSA, IEC |
| operating_temperature | -25°C to +70°C |
| frequency | 50/60 Hz |
| mechanical_life | 20,000 operations |
| terminal_type | Lug |
| enclosure_rating | Open |
| dimensions | 210mm x 255mm x 103mm |
| weight | 6.5 kg |
| compliance | RoHS |
