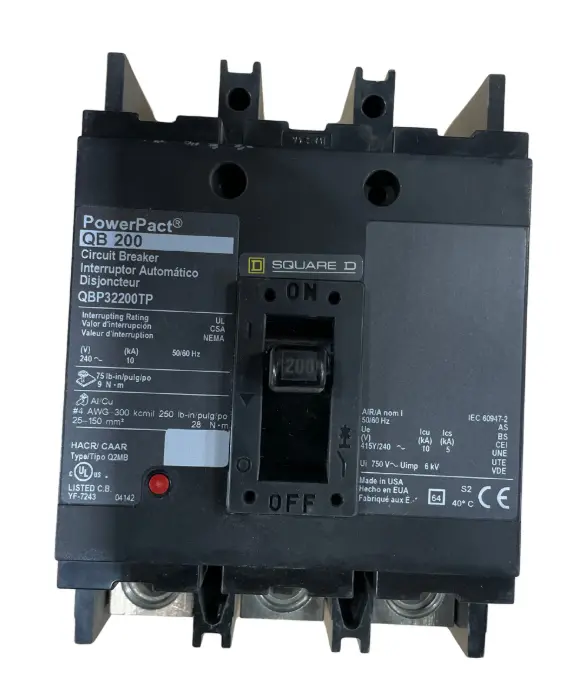

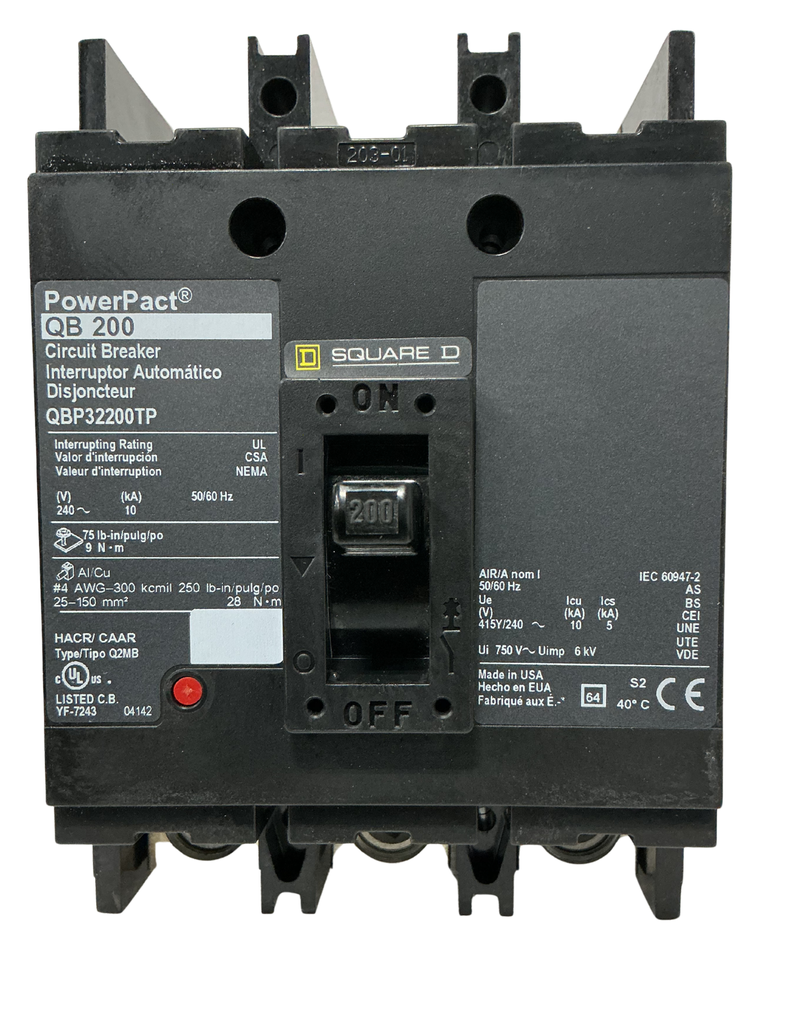

QBP32200TP
PowerPacT Q, 200A, 3 pole, 240VAC, 10kA, lugs, thermal magnetic, 80%
Specifications
| part_number | QBP32200TP |
| manufacturer | Square D |
| product_type | Molded Case Circuit Breaker |
| family | QBP |
| series | QBP |
| poles | 3 |
| amperage | 200 |
| voltage | 240 |
| interrupting_rating | 22 kAIC |
| mounting | Bolt-On |
| trip_unit | Thermal Magnetic |
| phase | 3 |
| frequency | 50/60 Hz |
| connection | Line Lug |
| wire_size | 4-300 kcmil CU/AL |
| certifications | UL Listed |
| application | Panelboard/Main/Feeder Protection |
| dimensions | 10.12 x 4.12 x 3.38 inches |
| operating_temperature | -25°C to 40°C |
| country_of_origin | USA |
| environment | Indoor |
