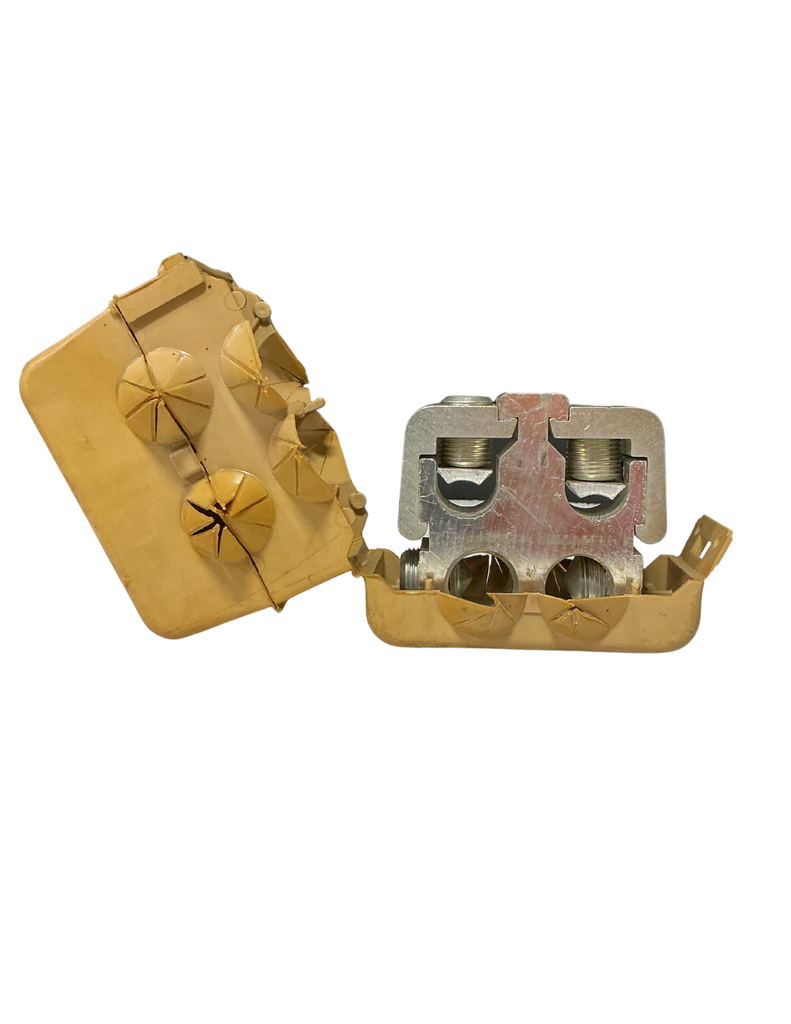

PTA2-500-500-W/C-NOB
Aluminum Multi-Tap Connector, Dual Rated, Main Conductor Range 500-250, Tap Range 500-4, 2 Main Ports, 2 Tap Ports, Tin Plated, UL, CSA, Includes Cover
Specifications
| part_number | PTA2-500-500-W/C |
| type | Power Terminal Assembly |
| maximum_current | 500 Amps |
| voltage_rating | 600 Volts AC/DC |
| wire_size_range | 500 MCM |
| material | Copper |
| plating | Tin-plated |
| insulation | With cover |
| mounting_style | Panel mount |
| number_of_poles | 2 |
| color | White cover |
| certifications | UL Listed |
| operating_temperature | -40°C to 105°C |
| application | Electrical distribution |
| country_of_origin | USA |
