LV429760

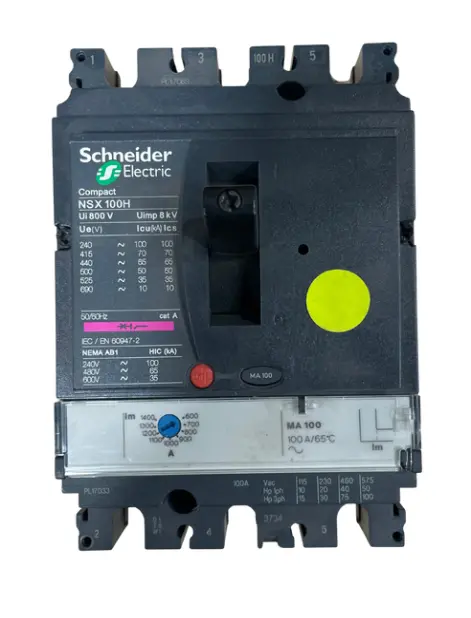

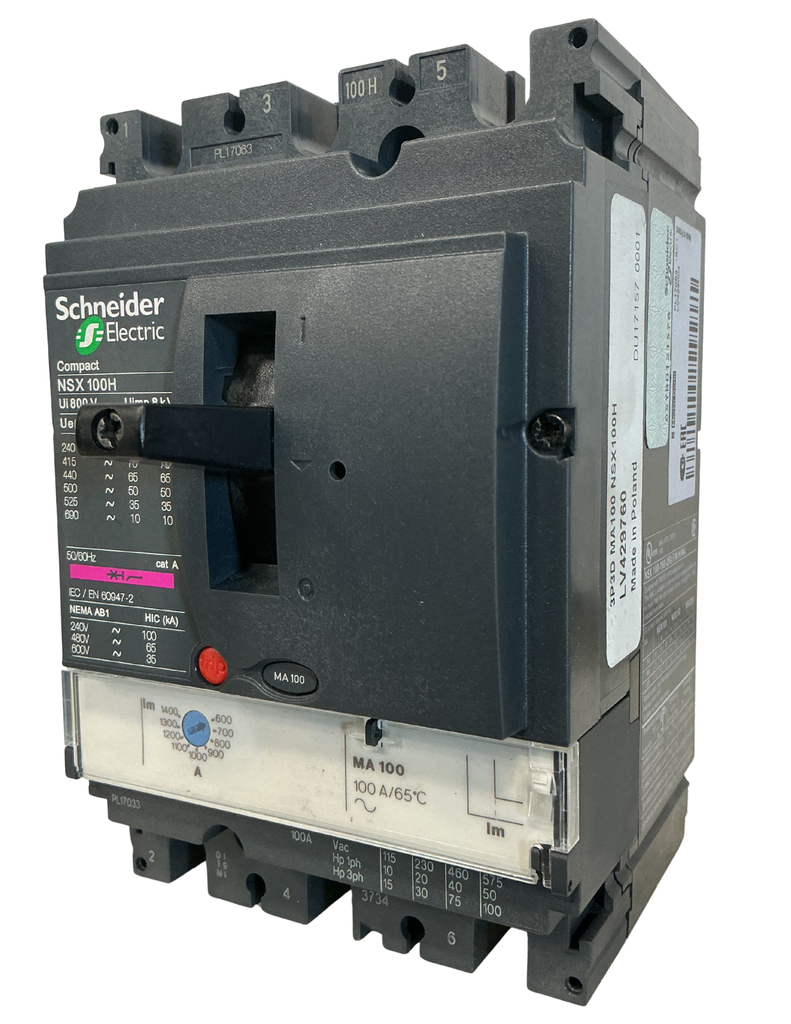

MCCB, NSX100H 3P 3D MA100
Specifications
| part_number | LV429760 |
| manufacturer | Schneider Electric |
| product_name | Compact NSX100N Circuit Breaker |
| type | Molded Case Circuit Breaker |
| rated_current | 100A |
| number_of_poles | 3 |
| breaking_capacity | 36 kA |
| rated_voltage | 690V AC |
| mounting_type | Fixed |
| trip_unit | Thermomagnetic |
| frequency | 50/60Hz |
| standards | IEC 60947-2 |
| protection_type | Overload and Short Circuit |
| dimensions_mm | 161x105x86 |
| weight_kg | 2.4 |
| connection | Front 连 |
