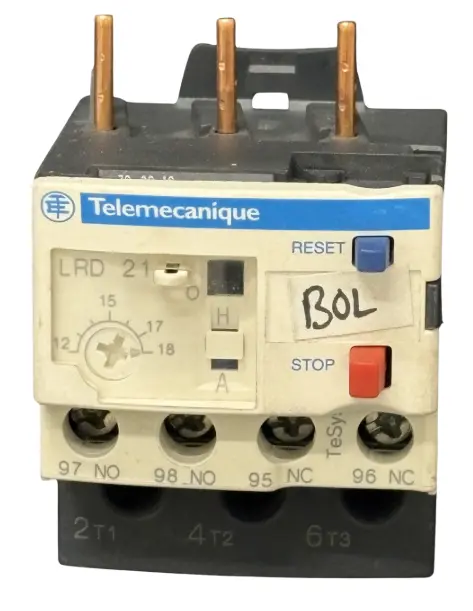

LRD21-U
12-18A OL RELAY TELE LC1D09...D38
Specifications
| part_number | LRD21-U |
| product_type | Thermal Overload Relay |
| brand | Schneider Electric |
| series | TeSys LRD |
| application | Motor Protection |
| current_range | 12 - 18 A |
| trip_class | 10A |
| reset_type | Manual or Automatic |
| mounting_type | Direct Mount |
| contacts | 1 Normally Open (NO), 1 Normally Closed (NC) |
| phase | 3 Phase |
| auxiliary_contacts_voltage | 690 V AC |
| frequency | 50/60 Hz |
| temperature_compensation | Yes |
| country_of_origin | France |
| standards | IEC 60947-4-1 |
| ip_rating | IP20 |
| rohs_compliant | Yes |
| connection_type | Screw Clamp Terminals |
| operating_temperature | -20°C to +60°C |
| dimensions_mm | 45 x 73 x 70 |
| weight_kg | 0.13 |
