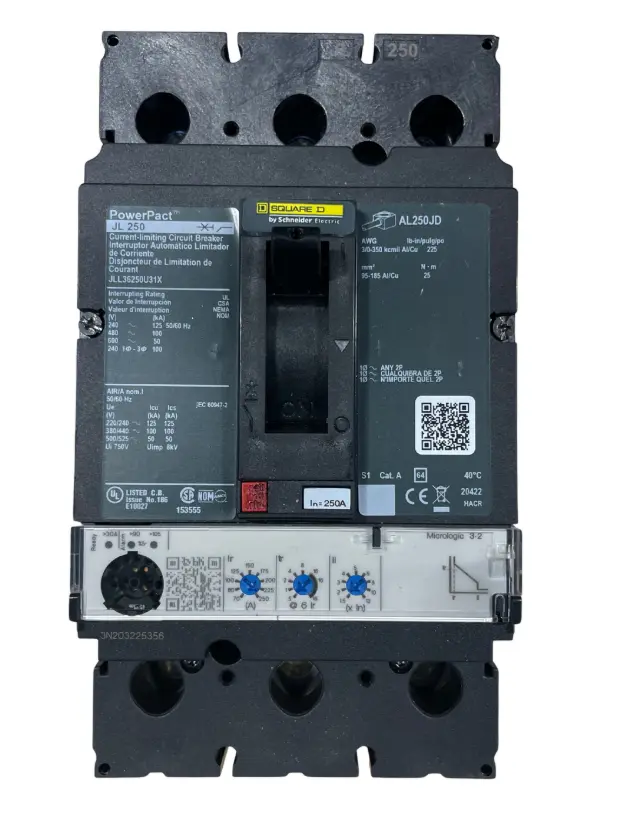

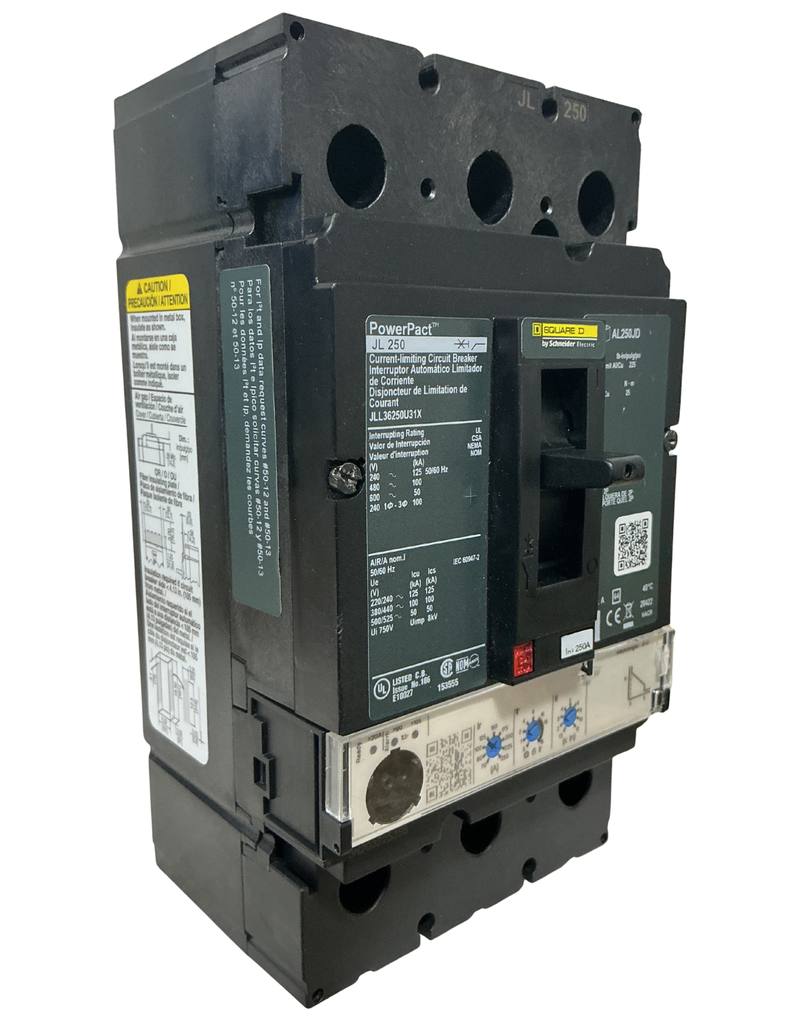

JLL36250U31X
250A 3P 600V L-Frame Breaker w/ U31X
Specifications
| part_number | JLL36250U31X |
| manufacturer | Square D |
| product_type | Molded Case Circuit Breaker |
| series | J-Frame |
| frame_size | 250 Amps |
| number_of_poles | 3 |
| system_voltage | 600 VAC |
| interrupting_rating | 65 kA @ 480 VAC |
| trip_unit_type | Thermal Magnetic |
| terminal_type | Line and Load Lugs |
| mounting | Unit Mount |
| frequency_rating | 50/60 Hz |
| phase | 3 |
| UL_listed | Yes |
| CE_certified | Yes |
| operating_temperature | -25°C to 60°C |
| wire_range | 4 AWG–250 kcmil (Cu/Al) |
| dimensions | 11.5 in x 6 in x 4 in |
| weight | 12 lbs |
| country_of_origin | USA |
