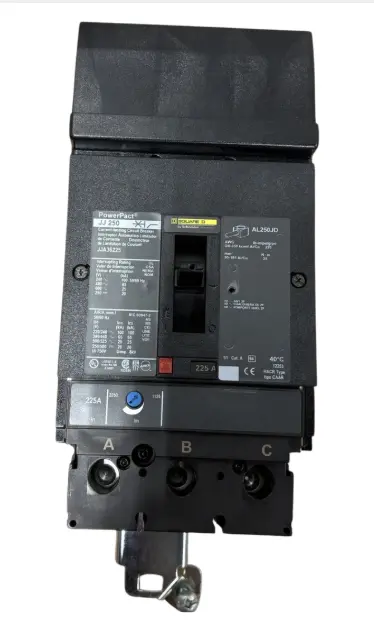

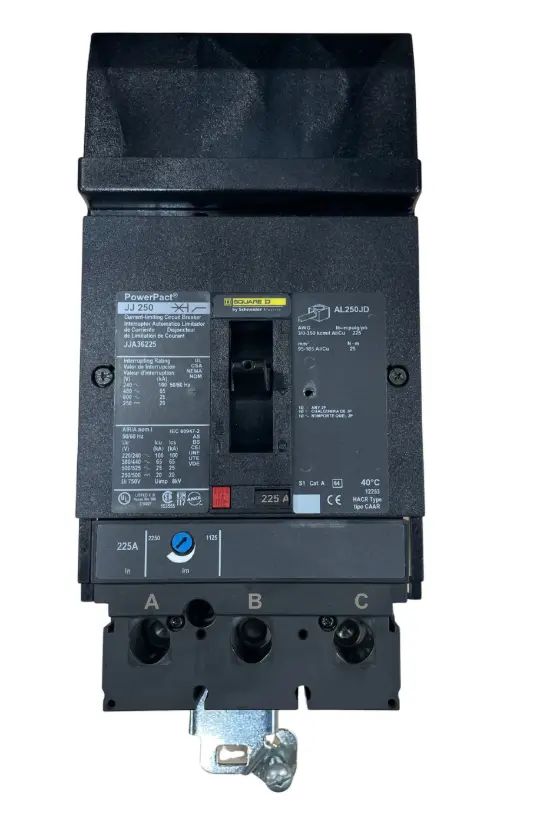

JJA36225
225A 3P 600V J-Frame Breaker
Specifications
| part_number | JJA36225 |
| product_type | Circuit Breaker |
| manufacturer | Square D |
| family | PowerPact J |
| frame_type | J Frame |
| amperage_rating | 225A |
| interrupting_rating | 65 kA @ 480V AC |
| number_of_poles | 3 |
| voltage_rating | 600V AC |
| mounting_type | Unit Mount |
| trip_unit | Thermal Magnetic |
| protection_type | Standard Protection |
| frequency_rating | 50/60 Hz |
| wire_connection | Lug |
| phase | 3 |
| approvals | UL Listed, CSA Certified |
| application | Panelboards, Switchboards, Motor Control Centers |
| operating_temperature | -25°C to 60°C |
| dimensions | 6.31 in H x 4.13 in W x 4.84 in D |
| weight | 8 lbs |
