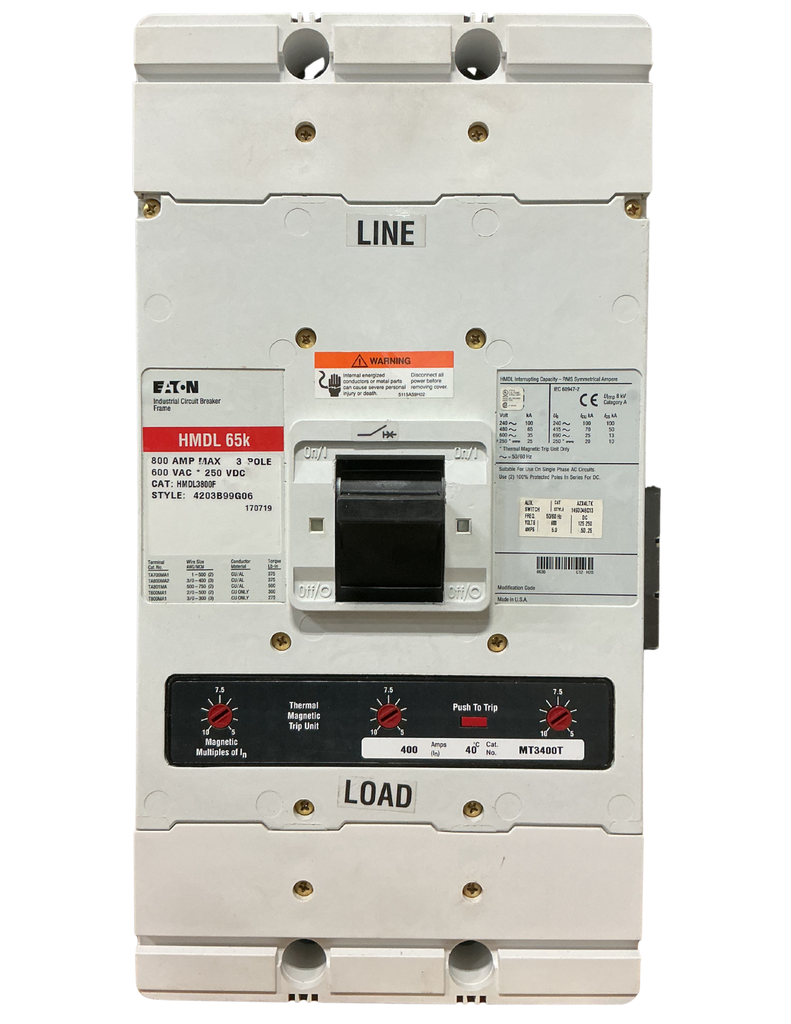

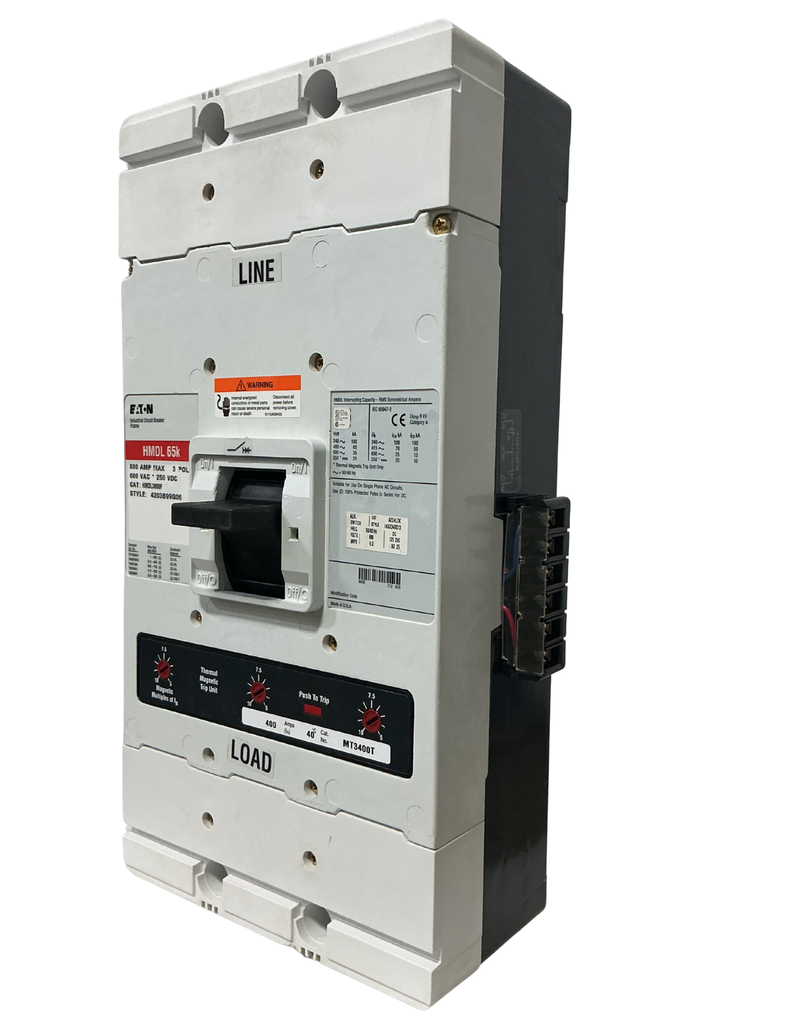

HMDL3400-NOB
Eaton Series C complete molded case circuit breaker, MDL-frame, HMDL, Complete breaker, Fixed thermal, Fixed magnetic trip type, Three-pole, 400A, 100 kAIC at 240 Vac, 65 kAIC at 480 Vac, 50/60 Hz
Specifications
| part_number | HMDL3400-NOB |
| product_type | Molded Case Circuit Breaker |
| manufacturer | Eaton |
| amperage_rating | 400A |
| voltage_rating | 600V AC |
| interrupting_rating | 35kA at 480V AC |
| mounting_type | Fixed |
| number_of_poles | 3 |
| trip_unit | Thermomagnetic |
| frame_type | HMDL |
| phase | 3 |
| terminal_type | Lugs |
| frequency | 50/60Hz |
| certifications | UL Listed |
| dimensions | 11.15 in x 5.5 in x 4.06 in |
| weight | 22 lbs |
| operating_temperature_range | -20°C to 40°C |
| special_features | Non-Interchangeable Trip Unit |
| series | Series C |
| application | Industrial panelboards and switchboards |
