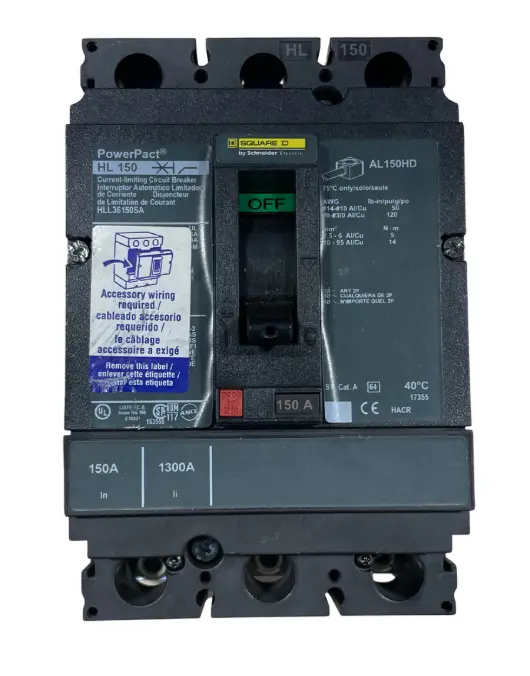

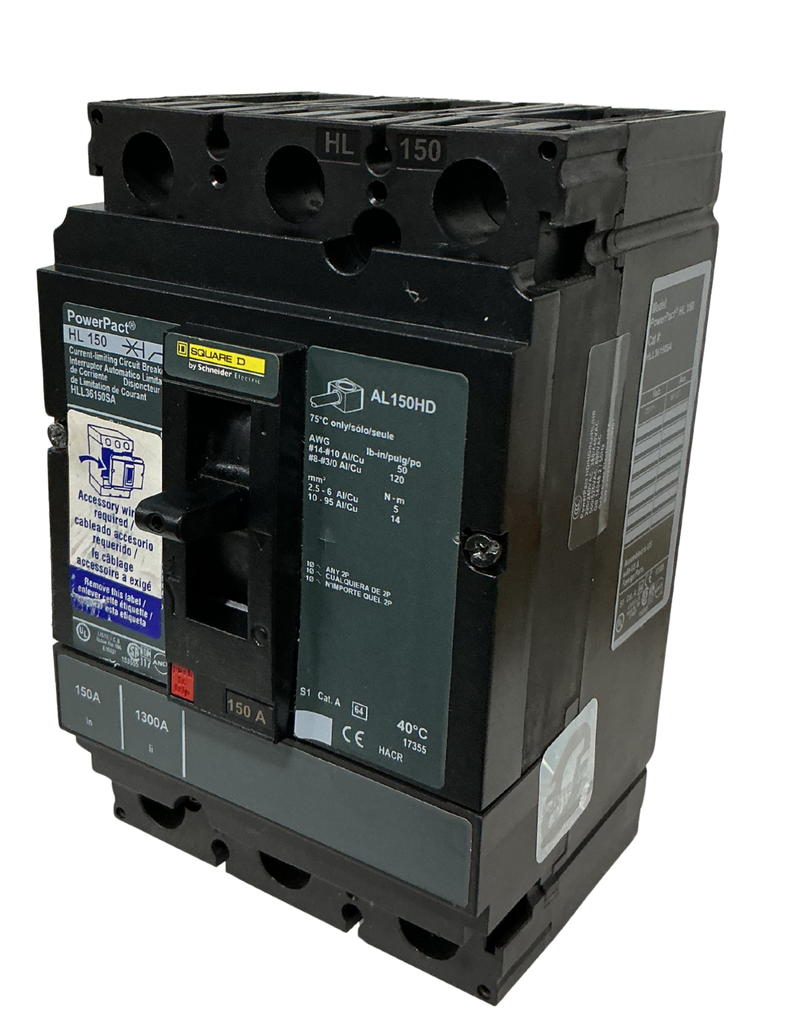

HLL36150SA
150A 3P 600V L-Frame Breaker w/ SA
Specifications
| part_number | HLL36150SA |
| manufacturer | Square D |
| product_type | Circuit Breaker |
| series | H-Frame |
| frame_type | HHL |
| voltage_rating | 600 VAC |
| interrupting_rating | 65 kA @ 480 VAC |
| number_of_poles | 3 |
| amperage_rating | 150 A |
| mounting_style | Bolt-On |
| trip_unit_type | Thermal Magnetic |
| frequency_rating | 50/60 Hz |
| phase | 3 |
| ul_listed | Yes |
| material | Molded Case |
| lug_type | Line and Load Lugs Included |
| dimensions | 10.10 x 4.13 x 4.06 in |
| weight | 13 lbs |
| application | Panelboards, Switchboards |
| special_features | High Interrupting Capacity |
| country_of_origin | USA |
