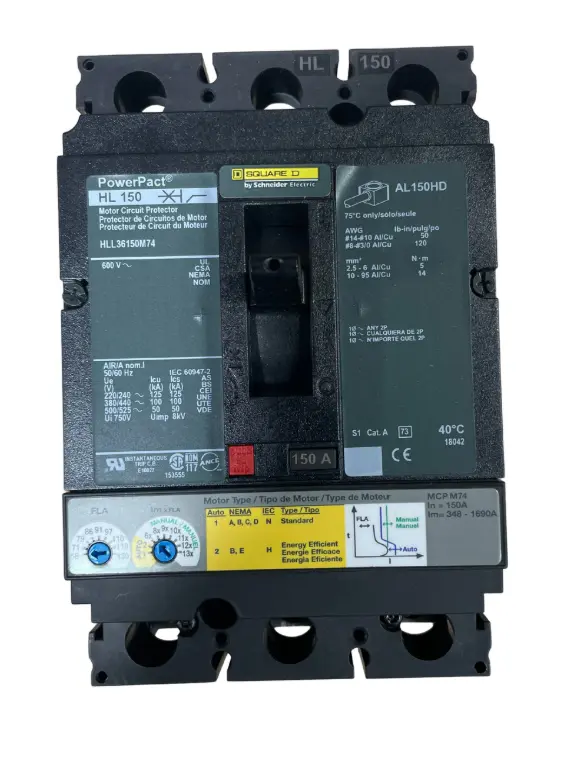

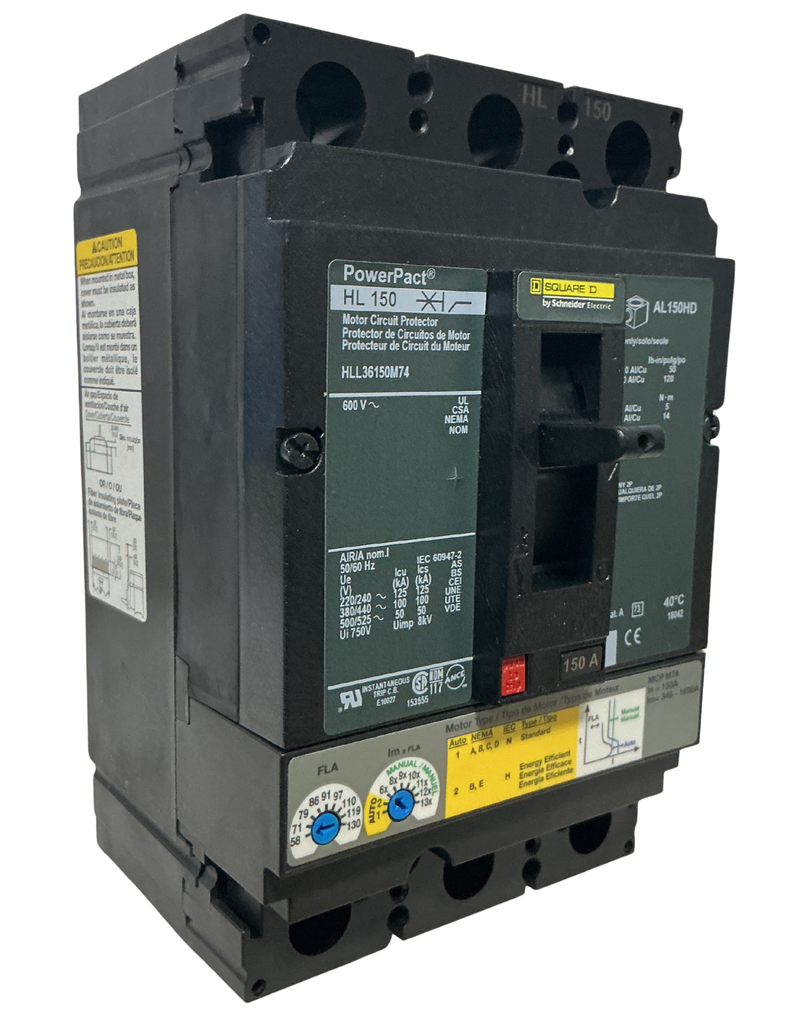

HLL36150M74
3P 150 A, 600 VAC motor protector
Specifications
| part_number | HLL36150M74 |
| product_type | Circuit Breaker |
| manufacturer | Square D |
| series | HLL |
| frame_size | 150A |
| interrupting_rating | 65 kA at 480Y/277 VAC |
| number_of_poles | 3 |
| voltage_rating | 480Y/277 VAC |
| mounting_type | Unit Mount |
| trip_unit_type | Thermal Magnetic |
| frequency_rating | 50/60 Hz |
| phase | 3 |
| wire_range | 4 AWG - 300 kcmil |
| dimensions | 13 in x 5 in x 4 in |
| weight | 12 lbs |
| standards | UL 489, CSA Certified |
| application | Panelboards, Switchboards, MCCs |
| environment | Indoor |
| color | Black |
| operating_temperature | -25°C to 60°C |
| terminals | Line and Load |
| handle_color | Black |
