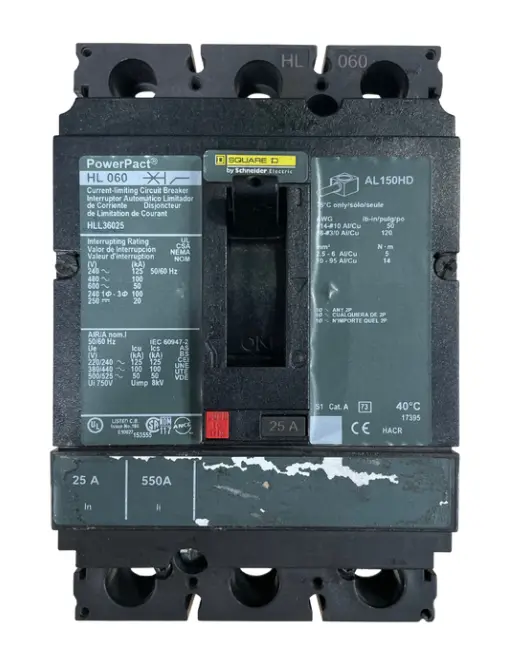

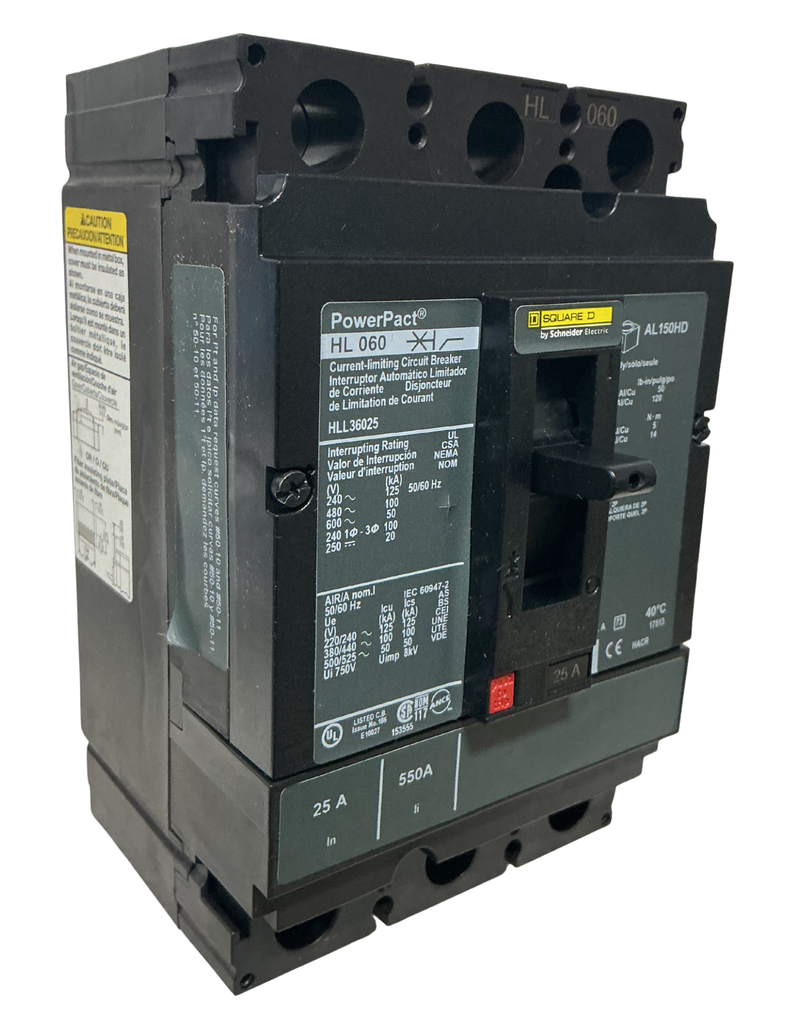

HLL36025
Circuit breaker, PowerPacT H, 25A, 3 pole, 600VAC, 50kA, lugs, thermal magnetic, 80%
This content will be shared across all product pages.
Specifications
| part_number | HLL36025 |
| product_type | Circuit Breaker |
| manufacturer | Eaton |
| voltage_rating | 600V AC |
| current_rating | 25A |
| number_of_poles | 3 |
| interrupting_rating | 65kA |
| mounting_type | Bolt-On |
| trip_type | Thermal Magnetic |
| frame_type | HLL |
| frequency | 50/60Hz |
| phase | 3 |
| application | Panelboards, Switchboards |
| approvals | UL Listed, CSA Certified |
| connection_type | Lug |
| operating_temperature | -20°C to 40°C |
| dimensions | 6.6 x 4.1 x 3.38 inches |
| weight | 4.2 lbs |
| color | Black |
| country_of_origin | USA |
