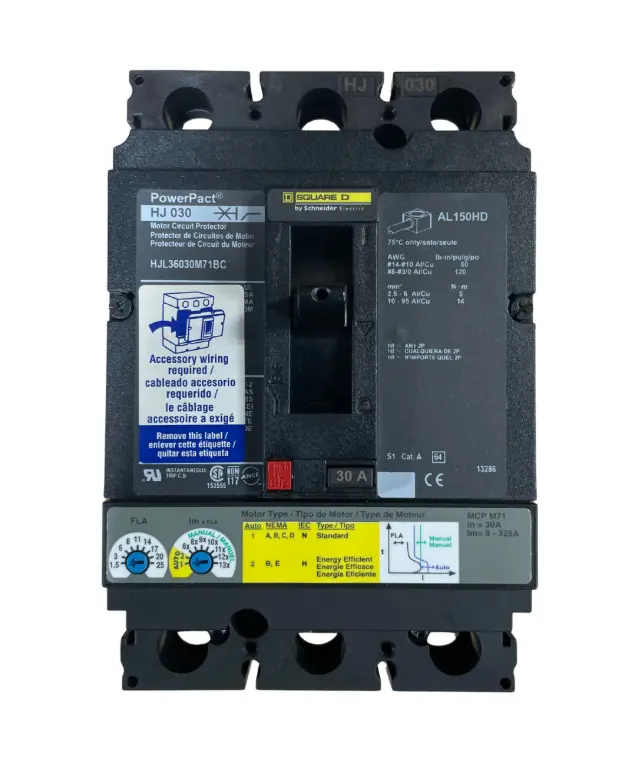

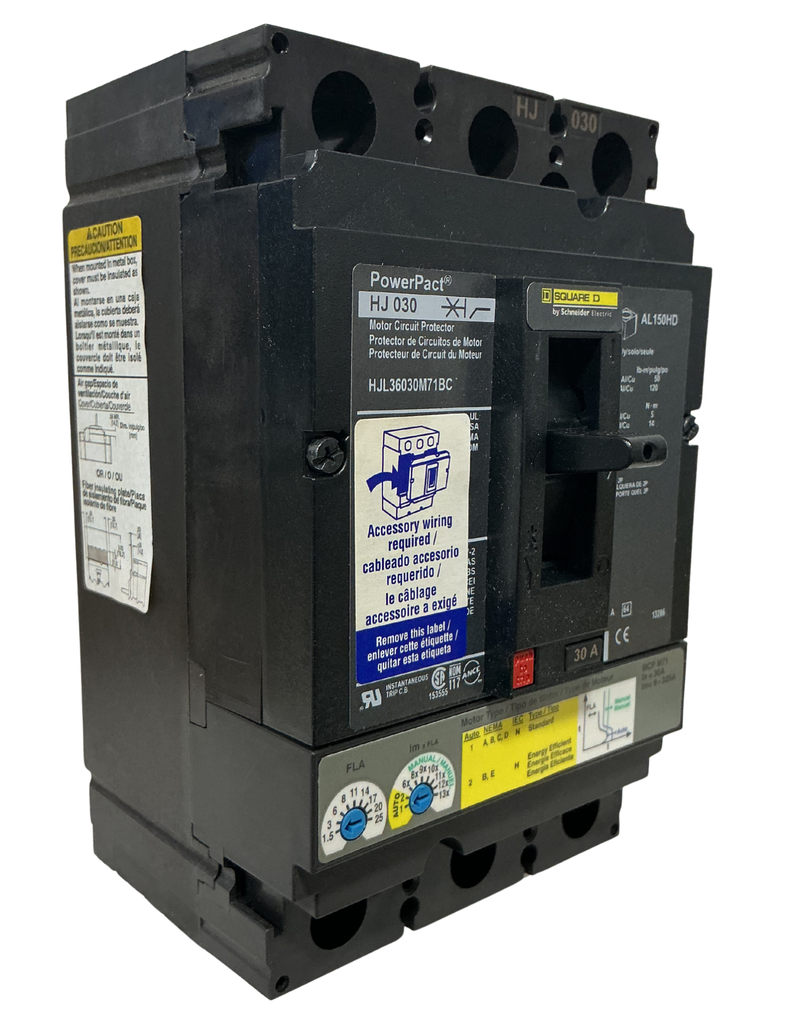

HJL36030M71BC
3P 30 A motor protector w/ alarm
Specifications
| part_number | HJL36030M71BC |
| category | Circuit Breaker |
| manufacturer | Square D |
| series | HJL |
| type | Molded Case Circuit Breaker |
| pole_count | 3 |
| amperage_rating | 30A |
| voltage_rating | 600V AC |
| interrupting_rating | 65kA at 480V AC |
| mounting_style | Bolt-On |
| trip_unit_type | Thermal Magnetic |
| frame_size | 225A |
| frequency_rating | 50/60 Hz |
| connection_type | Line and Load Lugs |
| phase | 3 Phase |
| ul_listed | Yes |
| dimensions | 10.1 x 4.1 x 3.9 inches |
| weight | 9 lbs |
| application | Panelboards, Switchboards, Motor Control Centers |
| certifications | UL, CSA |
| operating_temperature | -25°C to +50°C |
