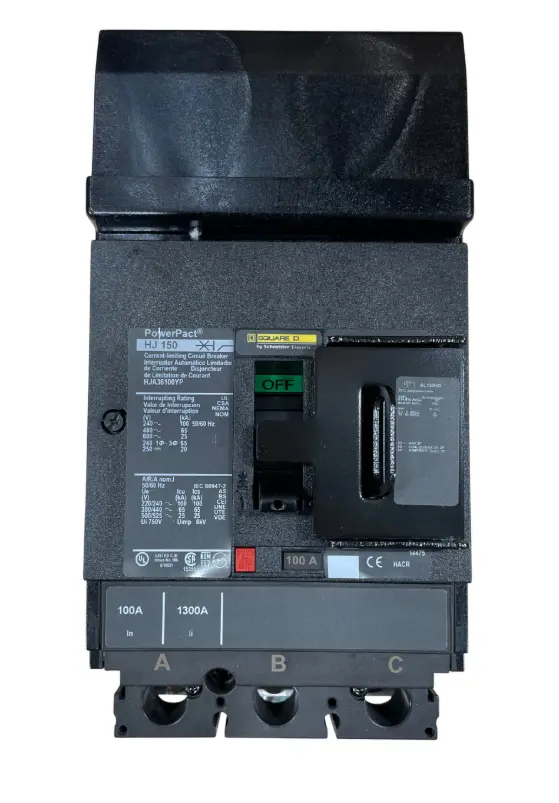

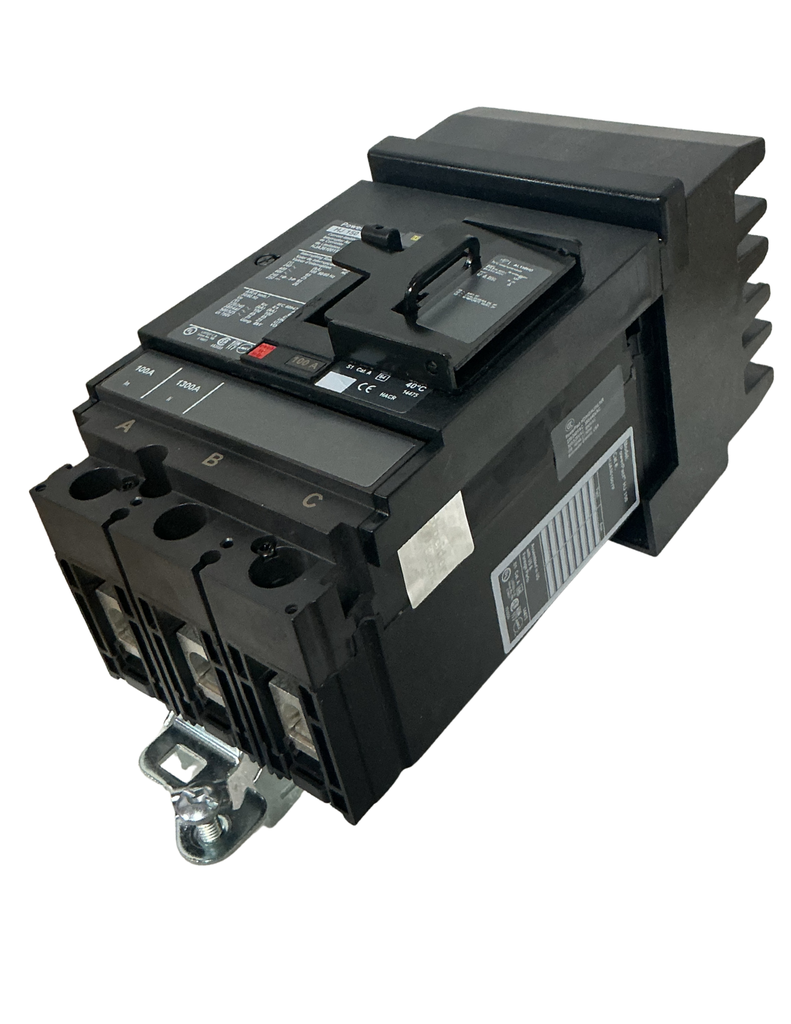

HJA36100YP
Square D 100A 3P J-Frame Plug-In MCCB
Specifications
| part_number | HJA36100YP |
| manufacturer | Square D |
| product_type | Molded Case Circuit Breaker |
| frame_type | HJ |
| interrupting_rating | 65 kA at 480 Vac |
| amperage_rating | 100 A |
| voltage_rating | 600 Vac |
| number_of_poles | 3 |
| mounting_type | Bolt-On |
| trip_unit_type | Thermal Magnetic |
| phase | 3 |
| frequency | 50/60 Hz |
| wire_range | 14-1/0 AWG Al/Cu |
| lug_type | Line and Load Lugs Included |
| operating_temperature | -25°C to 40°C |
| protection_type | Standard Protection |
| certifications | UL Listed, CSA Certified |
| application | Power Distribution |
| series | PowerPact H |
| dimensions | 5.66 in H x 4.12 in W x 4.84 in D |
| weight | 7.8 lb |
| country_of_origin | Mexico |
