HJA36030

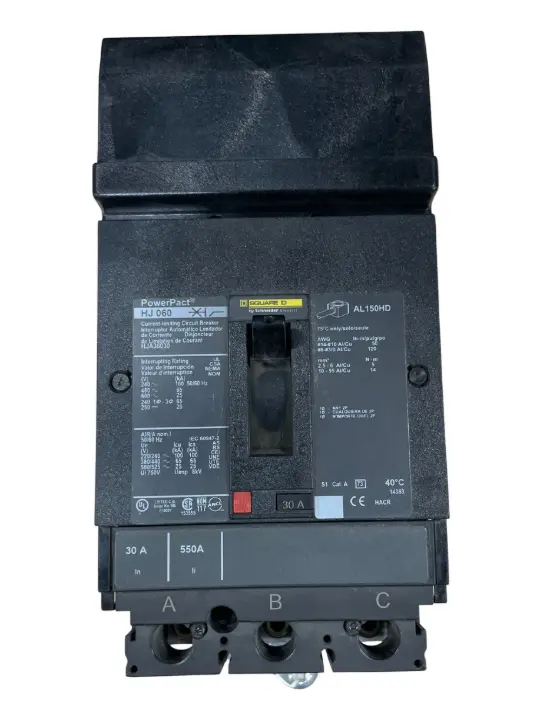

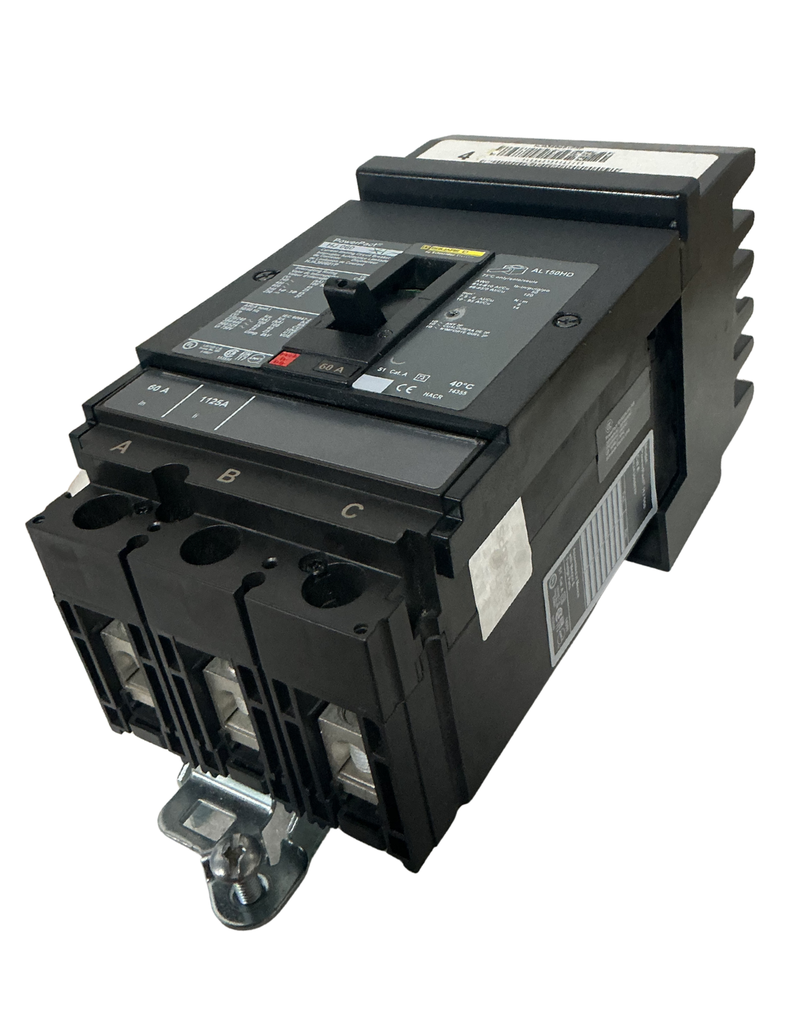

Circuit breaker, PowerPacT H, 30A, 3 pole, 600VAC, 25kA, I-Line, thermal magnetic, 80%, ABC
HJA36030
Specifications
| part_number | HJA36030 |
| manufacturer | Square D |
| product_type | Circuit Breaker |
| series | PowerPact H |
| frame_type | H-Frame |
| number_of_poles | 3 |
| amperage | 30 A |
| voltage_rating | 600 V AC |
| interrupting_rating | 65 kA @ 480 V AC |
| mounting_type | Unit Mount |
| trip_unit_type | Thermal Magnetic |
| phase | 3 |
| frequency | 50/60 Hz |
| lug_type | Mechanical Lugs |
| connection | Line and Load |
| certifications | UL Listed, CSA Certified |
| dimensions | 6.47 in x 4.12 in x 3.93 in |
| application | Panelboards, Switchboards, Motor Control Centers |
| environment | Indoor |
| special_features | HACR Rated |
| status | Active |
