GTC06AF32-22S

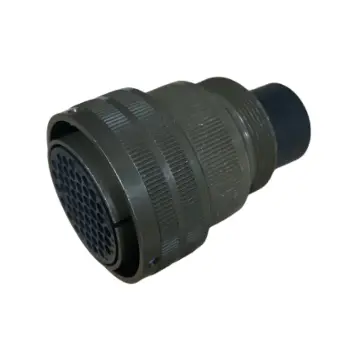

Circular MIL Spec Connector GTC06AF32-22S
Specifications
| part_number | GTC06AF32-22S |
| manufacturer | Amphenol |
| series | GTC06 |
| product_type | Circular Connector |
| connector_style | Plug |
| shell_size | 32 |
| contact_arrangement | 32-22 |
| contact_type | Socket |
| mounting_type | Free Hanging |
| coupling_type | Threaded |
| contacts_installed | Yes |
| number_of_contacts | 22 |
| termination | Crimp |
| shell_material | Aluminum Alloy |
| shell_finish | Olive Drab Cadmium |
| contact_material | Copper Alloy |
| contact_finish | Gold |
| insert_material | Thermoplastic |
| current_rating | 23A |
| voltage_rating | 600V |
| operating_temperature | -55°C to +125°C |
| mil_spec | MIL-DTL-38999 Series I |
| environmental_sealing | Yes |
| color | Olive Drab |
| rohs_compliant | No |
| ip_rating | IP67 |
| connector_orientation | Straight |
| keying | Standard |
| shielding | Yes |
| panel_mount | No |
| flammability_rating | UL94 V-0 |
