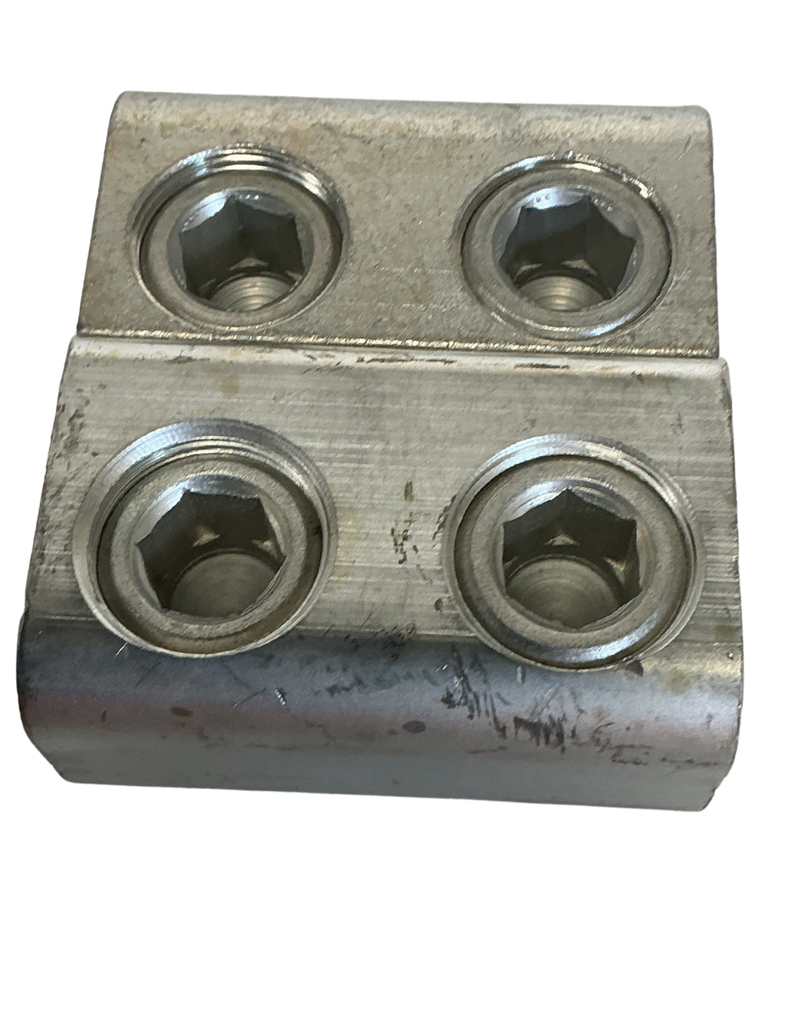

GTA-750-750-W/C

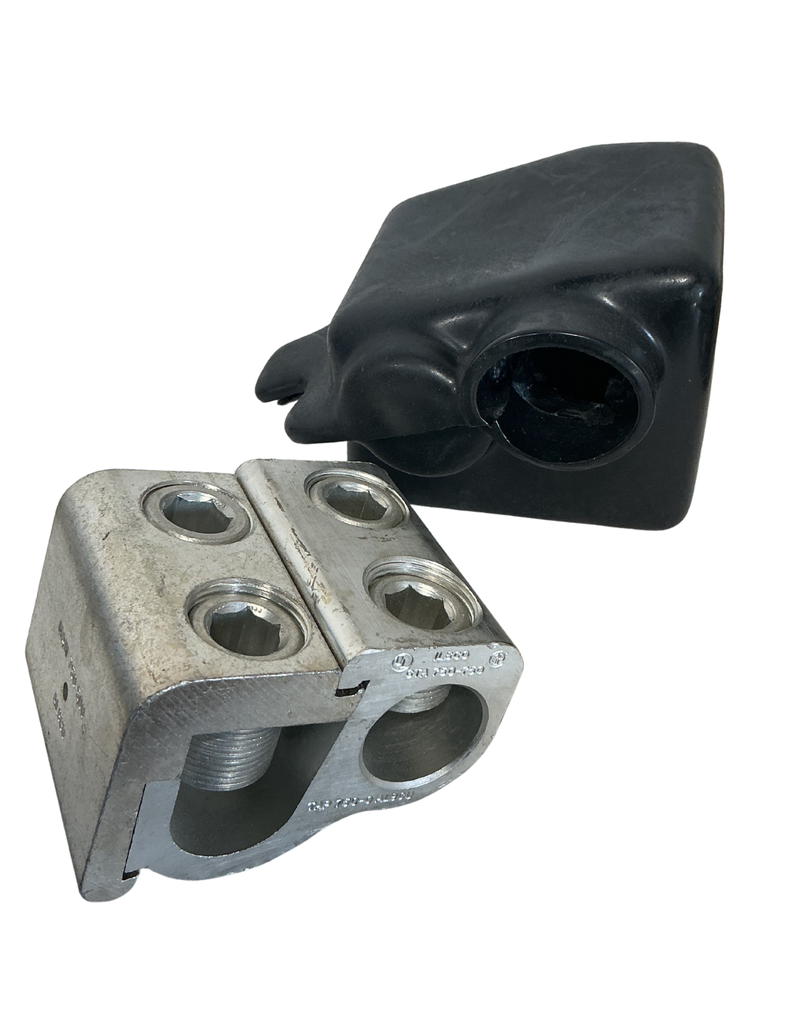

Aluminum Parallel Tap Connector, Dual Rated, Main Conductor Range 750-500, Tap Range 750-1/0, Tin Plated, UL, CSA, Includes Cover
This content will be shared across all product pages.
Specifications
| part_number | GTA-750-750-W/C |
| product_type | Electrical |
| description | Electrical terminal lug |
| conductor_range | 750 MCM |
| barrel_type | Long |
| material | Aluminum |
| plating | Tin-plated |
| number_of_holes | 2 |
| hole_diameter | 0.563 inches |
| stud_spacing | 1.75 inches |
| mounting_type | Bolt-on |
| insulation | None |
| wire_entry | One end |
| color | Silver |
| cULus_listed | Yes |
| application | Power distribution |
| operating_temperature | -40°C to 90°C |
| maximum_voltage | 600V |
| standards_met | UL 486A/B |
| conductor_material | Copper or Aluminum |
| manufacturer | Generic |
| compliance | RoHS |
| dimensions_length | 7.38 inches |
| dimensions_width | 1.94 inches |
| dimensions_height | 1.00 inch |
