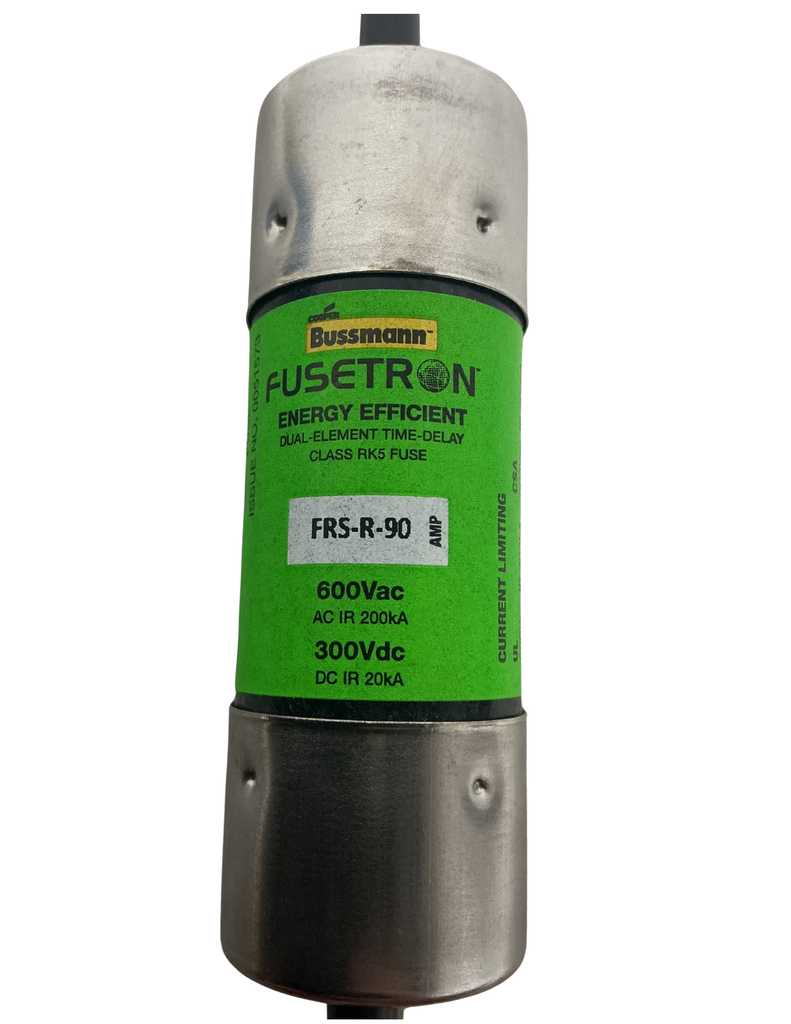

FRS-R-90
Eaton Bussmann series FRS-R fuse, 90 A, Dual, Class RK5, Non-indicating, Blade end x blade end, 10 sec at 500%, 20 kAIC at 300 Vdc|200 kAIC at 600 V, Standard, 600 V, 300 Vdc
This content will be shared across all product pages.
Specifications
| part_number | FRS-R-90 |
| Brand | Eaton |
| product_type | Time-Delay Fuse |
| series | FRS-R |
| amperage_rating | 90 A |
| voltage_rating_ac | 600 V |
| voltage_rating_dc | 300 V |
| interrupting_rating | 200 kA AC |
| fuse_class | RK5 |
| mounting_type | Cartridge |
| body_material | Fiberglass |
| indication | No Indicator |
| operating_temperature | -55°C to +60°C |
| approvals | UL Listed, CSA Certified |
| dimensions | 1.63 in diameter x 8.63 in length |
| application | Industrial, Motor Protection, Circuit Protection |
| frequency_rating | 50/60 Hz |
| stage | Single |
| standards_met | UL 248-12 |
| rejection_feature | Yes |
| country_of_origin | USA |
