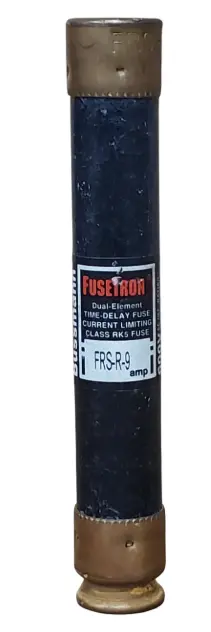

FRS-R-9-U
Eaton Bussmann series FRS-R fuse, 9 A, Dual, Class RK5, Non-indicating, Ferrule end x ferrule end, 10 sec at 500%, 200 kAIC at 600 V|20 kAIC at 300 Vdc, Standard, 600 V, 300 Vdc
Specifications
| part_number | FRS-R-9-U |
| manufacturer | Littelfuse |
| product_type | Fuse |
| series | FRS-R |
| amp_rating | 9 |
| voltage_rating | 600V AC |
| fuse_class | RK5 |
| interrupting_rating | 200kA RMS Sym |
| fuse_type | Time-Delay |
| element | Dual |
| mounting_type | Cartridge |
| body_material | Fiberglass |
| body_style | Cylindrical |
| dimensions | 13/16 inch diameter x 5 inch length |
| approvals | UL Listed, CSA Certified |
| application | Motor Circuits, Power Distribution |
| rohs_compliance | Yes |
| country_of_origin | Mexico |
| frequency_rating | 50/60 Hz |
| rejection_feature | Yes |
| indication | No |
| connection_type | Ferrule |
| max_operating_temperature | 60°C |
| min_operating_temperature | -40°C |
