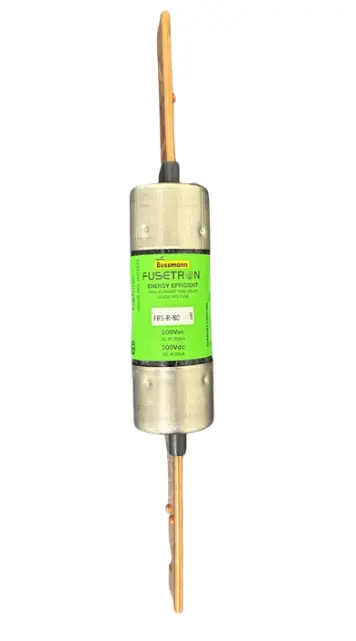

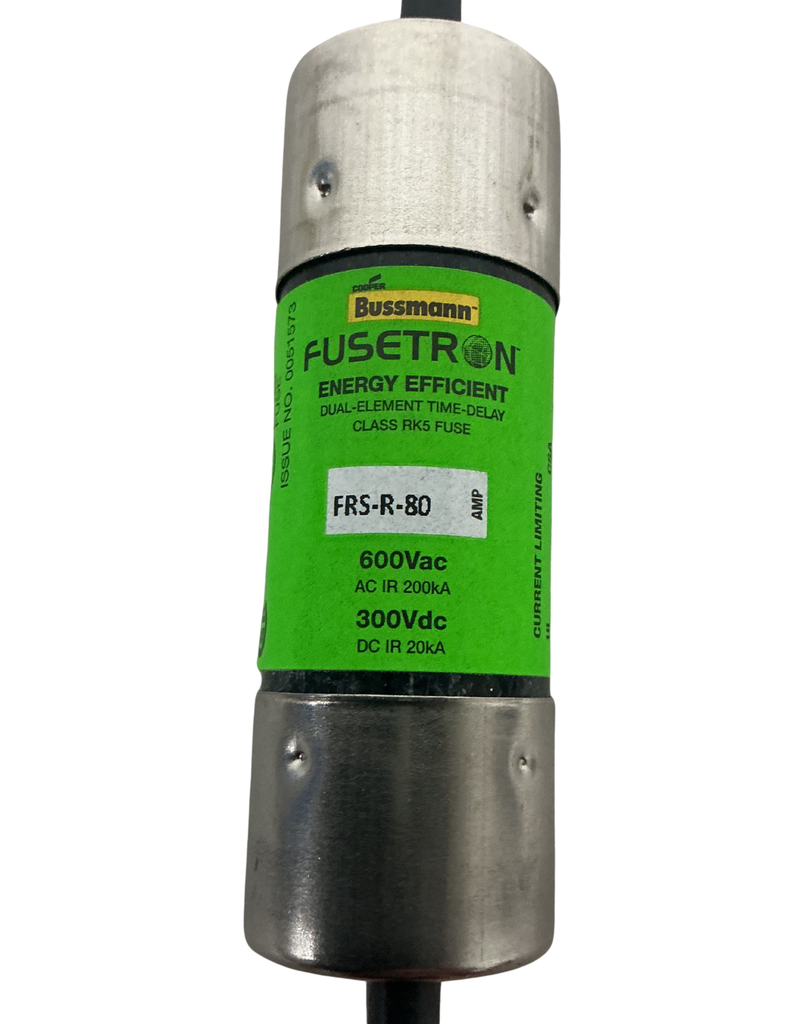

FRS-R-80
Eaton Bussmann series FRS-R fuse, 80 A, Dual, Class RK5, Non-indicating, Blade end x blade end, 10 sec at 500%, 20 kAIC at 300 Vdc|200 kAIC at 600 V, Standard, 600 V, 300 Vdc
Specifications
| part_number | FRS-R-80 |
| product_name | Time-Delay Fuse |
| manufacturer | Littelfuse |
| series | FRS-R |
| amperage_rating | 80A |
| voltage_rating_ac | 600V |
| voltage_rating_dc | 300V |
| fuse_class | RK5 |
| interrupting_rating | 200kA AC |
| mounting_type | Cartridge (Bolt-in or holder) |
| body_material | Fiberglass |
| dimensions | 5.88 in x 1.63 in |
| operating_temperature_range | -40°C to +80°C |
| application | Motor protection, branch circuits |
| approvals | UL Listed, CSA Certified |
| rohs_compliance | Yes |
| country_of_origin | USA |
