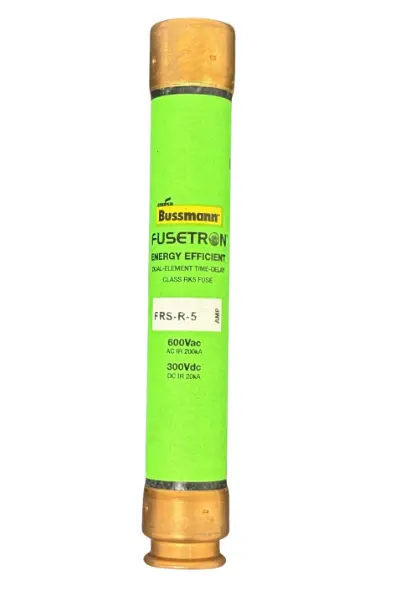

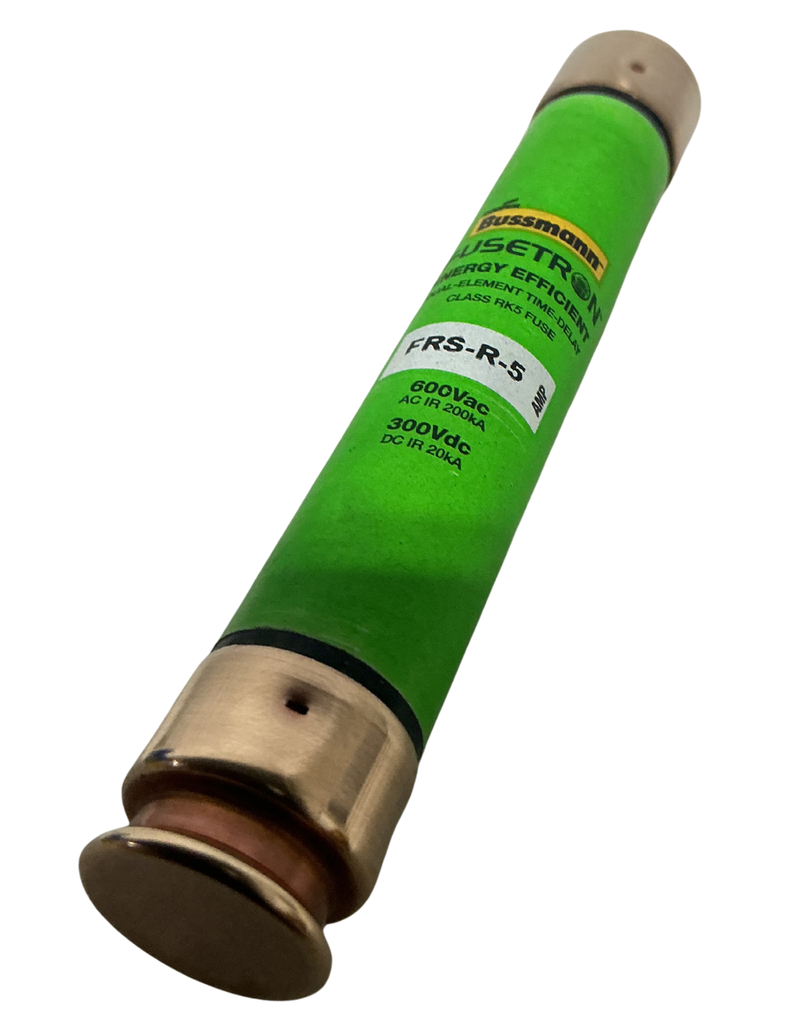

FRS-R-5
Eaton Bussmann series FRS-R fuse, 5 A, Dual, Class RK5, Non-indicating, Ferrule end x ferrule end, 10 sec at 500%, 20 kAIC at 300 Vdc|200 kAIC at 600 V, Standard, 600 V, 300 Vdc
This content will be shared across all product pages.
Specifications
| part_number | FRS-R-5 |
| product_type | Fuse |
| series | FRS-R |
| amperage_rating | 5 A |
| voltage_rating_ac | 600 V |
| voltage_rating_dc | 300 V |
| interrupting_rating | 200000 A RMS Sym |
| fuse_class | RK5 |
| fuse_type | Current Limiting |
| body_style | Cylindrical |
| mounting_type | Cartridge (Bolt-In/Clip) |
| dimensions_length | 5.88 in |
| dimensions_diameter | 0.81 in |
| material | Melamine Tube |
| compliance | UL Listed, CSA Certified |
| application | Motor Protection, Branch Circuits |
| manufacturer | Littelfuse |
| operating_temperature | -55°C to +60°C |
| country_of_origin | USA |
