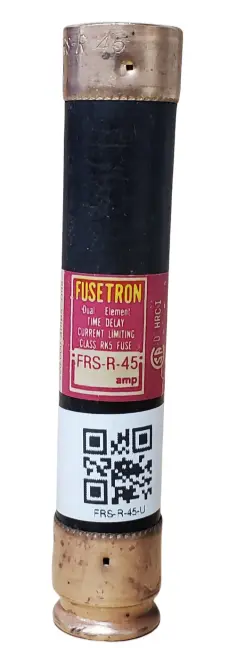

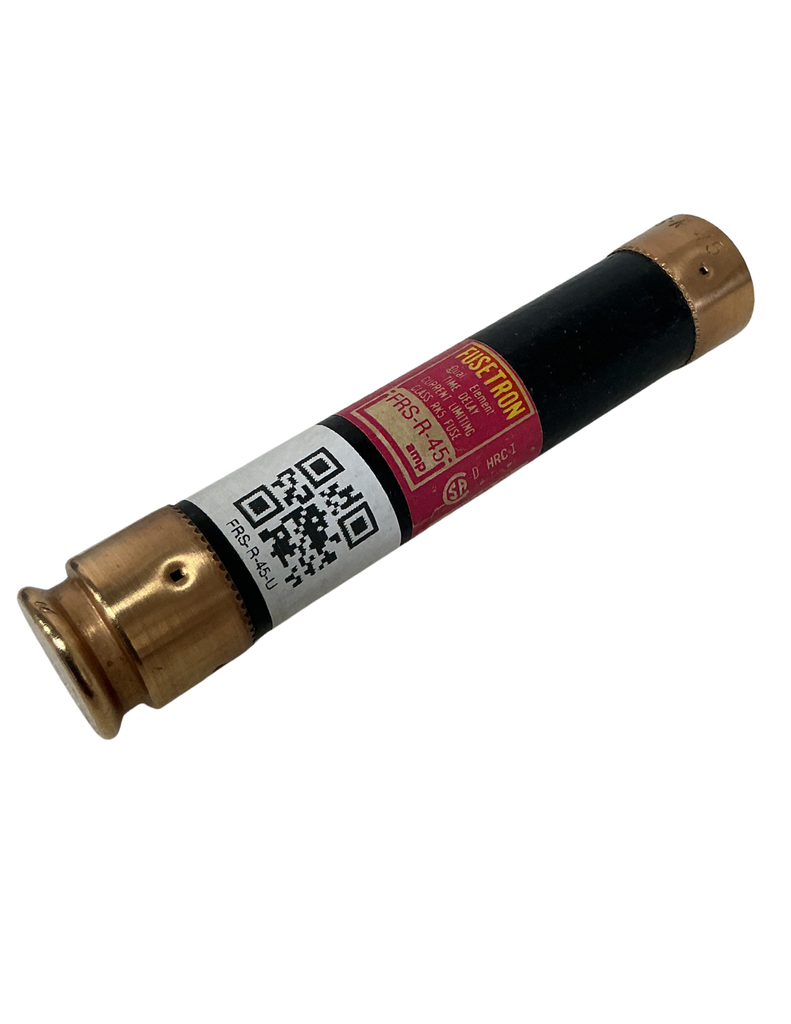

FRS-R-45-U
Eaton Bussmann series FRS-R fuse, 45 A, Dual, Class RK5, Non-indicating, Ferrule end x ferrule end, 10 sec at 500%, 20 kAIC at 250 Vdc|200 kAIC at 600 V, Standard, 600 V, 250 Vdc
Specifications
| part_number | FRS-R-45-U |
| manufacturer | Littelfuse |
| series | FRS-R |
| product_type | Fuse |
| fuse_type | Time-Delay |
| class | RK5 |
| voltage_rating_ac | 600V |
| voltage_rating_dc | 300V |
| amperage_rating | 45A |
| interrupting_rating | 200kA AC |
| mounting_type | Cartridge |
| body_material | Fiberglass |
| body_style | Cylindrical |
| length | 5.88 in |
| diameter | 0.81 in |
| application | Industrial, Motor Protection, Circuits |
| standards | UL Listed, CSA Certified |
| operating_temperature_range | -55°C to +60°C |
| country_of_origin | USA |
| color | White |
| approvals | UL, CSA |
| replacement_for | Bussmann FRN-R-45 |
| rohs_status | Compliant |
| availability | Stock |
