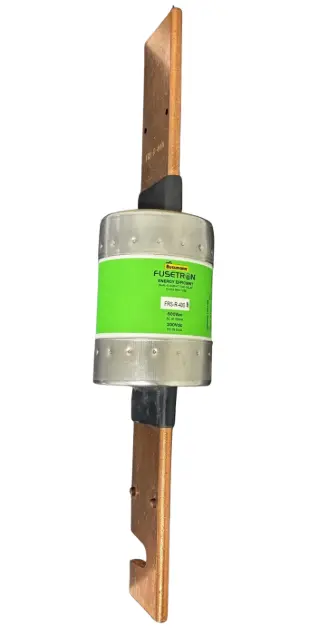

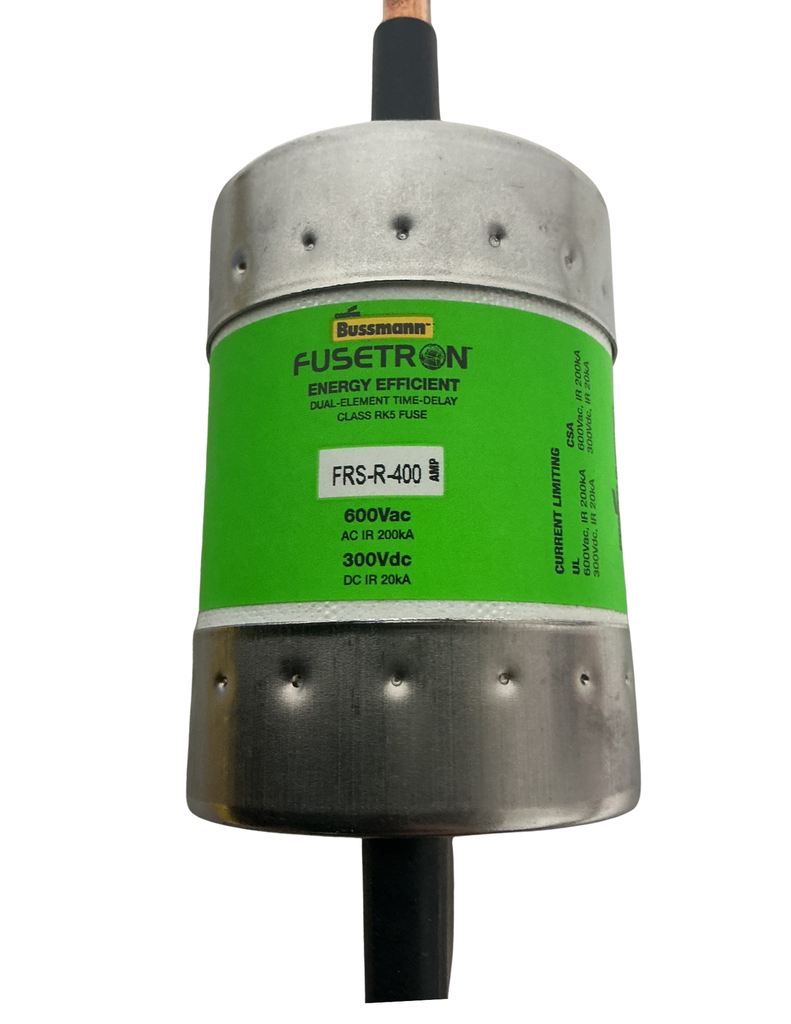

FRS-R-400
Eaton Bussmann series FRS-R fuse, 400 A, Dual, Class RK5, Non-indicating, Blade end x blade end, 10 sec at 500%, 20 kAIC at 300 Vdc|200 kAIC at 600 V, Standard, 600 V, 300 Vdc
This content will be shared across all product pages.
Specifications
| part_number | FRS-R-400 |
| product_type | Fuse |
| manufacturer | Littelfuse |
| series | FRS-R |
| amperage_rating | 400A |
| voltage_rating_ac | 600V |
| voltage_rating_dc | 300V |
| interrupting_rating | 200kA AC |
| fuse_class | RK5 |
| fuse_type | Time-Delay |
| mounting_type | Cartridge |
| body_material | Fiberglass |
| body_diameter | 2.06 in |
| body_length | 13.63 in |
| approvals | UL Listed, CSA Certified |
| application | Motor Protection, Power Distribution |
| rohs_compliance | Yes |
| operating_temperature_range | -55°C to +80°C |
| indicating | No |
