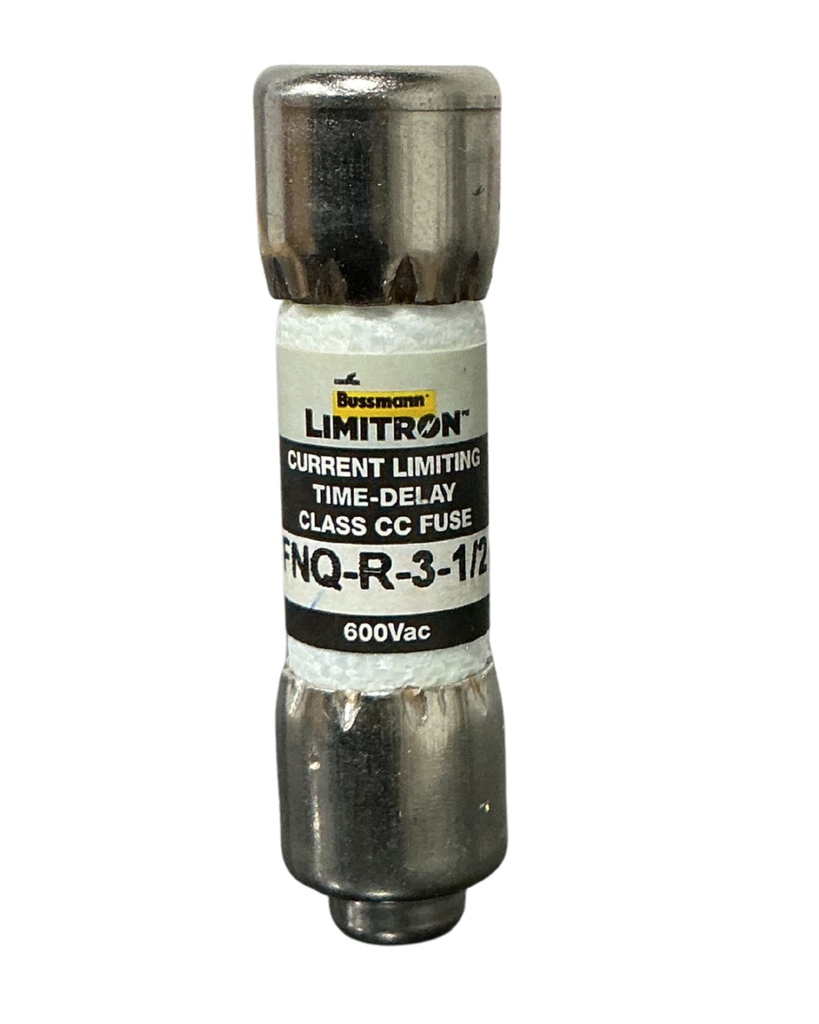

FNQ-R-3-1/2
Eaton Bussmann series FNQ-R fuse, 3.5 A, Class CC, Non-indicating, Ferrule end x ferrule end, 12 sec at 200%, 200 kAIC, Melamine tube, Standard, 600 V
This content will be shared across all product pages.
Specifications
| part_number | FNQ-R-3-1/2 |
| manufacturer | Littelfuse |
| product_type | Fuse |
| series | FNQ-R |
| amperage_rating | 3.5 A |
| voltage_rating | 600 V AC |
| fuse_class | CC |
| interrupting_rating | 200kA RMS Sym |
| mounting_type | Cartridge |
| body_diameter | 10.3 mm |
| body_length | 38.1 mm |
| response_characteristic | Time-Delay (Slow Blow) |
| material | Melamine |
| applications | Branch Circuit Protection |
| approvals | UL Listed, CSA Certified, CE |
| operating_temperature_range | -55°C to +125°C |
| termination_style | Clip |
| standards_met | UL 248-4 |
| indication | Non-Indicating |
| rohs_compliant | Yes |
| country_of_origin | USA |
