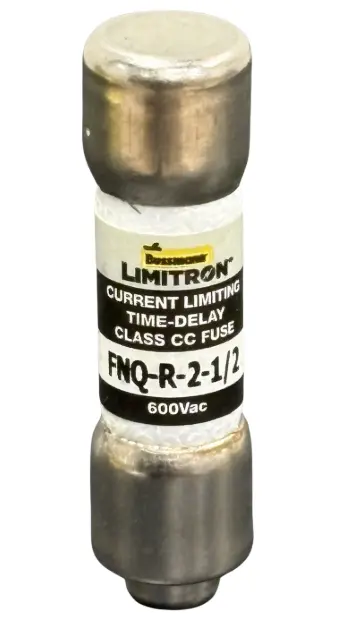

FNQ-R-2-1/2
Eaton Bussmann series FNQ-R fuse, 2.5 A, Class CC, Non-indicating, Ferrule end x ferrule end, 12 sec at 200%, 200 kAIC, Melamine tube, Standard, 600 V
This content will be shared across all product pages.
Specifications
| part_number | FNQ-R-2-1/2 |
| product_type | Fuse |
| fuse_type | Time-Delay |
| series | FNQ-R |
| current_rating | 2.5 A |
| voltage_rating_ac | 500 V |
| voltage_rating_dc | 300 V |
| interrupting_rating_ac | 200 kA |
| interrupting_rating_dc | 20 kA |
| length | 38.1 mm |
| diameter | 10.3 mm |
| body_material | Glass |
| ferrule_material | Nickel-plated brass |
| mounting_type | Cartridge |
| class | Class CC |
| approvals | UL Listed, CSA Certified, CE |
| operating_temperature | -55°C to +125°C |
| application | Branch Circuit Protection |
| Brand | Eaton |
| marking | FNQ-R-2-1/2 |
| rohs_compliance | Yes |
| country_of_origin | USA |
