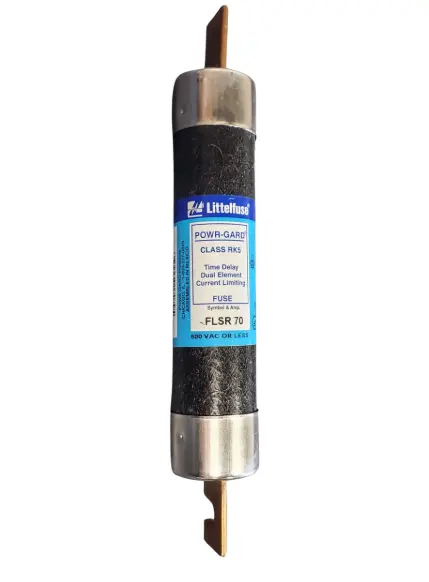

FLSR-070ID-NOB
FUSE: 70A 600VAC CLASS RK5 LITTELFUSE FUSES
Specifications
| part_number | FLSR-070ID-NOB |
| product_name | Fuse |
| type | Time-Delay Fuse |
| series | FLSR |
| current_rating | 70 Amps |
| voltage_rating | 600 Volts AC |
| interrupting_rating | 200,000 Amps RMS Symmetrical |
| class | RK5 |
| element | Dual Element |
| mounting_style | Cartridge |
| body_material | Fiberglass |
| end_cap_material | Tin-Plated Copper |
| dimensions | 1.06 inch diameter x 8.63 inch length |
| application | Electrical Circuit Protection |
| compliance | UL Listed, CSA Certified |
| manufacturer | Littelfuse |
| special_features | Time-delay, current-limiting |
| replaces | None |
| environmental_conditions | Indoor Use |
| approval_standards | UL 248-12 |
| operating_temperature_range | -40°C to +85°C |
