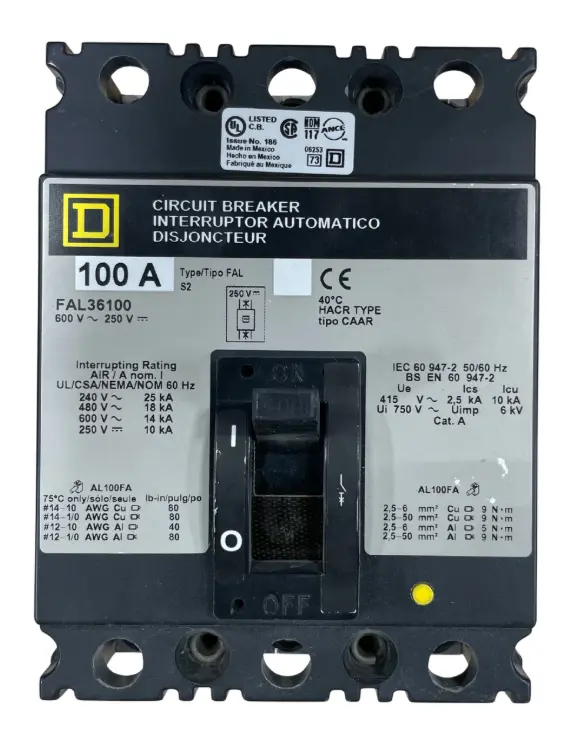

FAL36100-U
FA/LA MOLDED CASE CIRCUIT BREAKER 600V, 100A, 3P
This content will be shared across all product pages.
Specifications
| part_number | FAL36100-U |
| manufacturer | Square D |
| series | PowerPact F |
| type | Molded Case Circuit Breaker |
| frame_size | 100 Amp |
| rated_current | 100 Amps |
| voltage_rating | 600 Volts AC |
| interrupting_rating | 65 kA @ 240V AC, 25 kA @ 480V AC, 18 kA @ 600V AC |
| number_of_poles | 3 |
| mounting_style | Unit Mount |
| trip_unit | Thermal Magnetic |
| protection_type | Standard Protection |
| frequency | 50/60 Hz |
| lug_type | AL/CU Lugs |
| wire_range | 4 AWG - 1/0 AWG |
| certifications | UL Listed, CSA Certified |
| application | Panelboards, Switchboards, Motor Control Centers |
| dimensions | 6.47 in x 4.12 in x 3.58 in |
| weight | 5 lbs |
| environmental_rating | NEMA 1 (when installed) |
| country_of_origin | USA |
