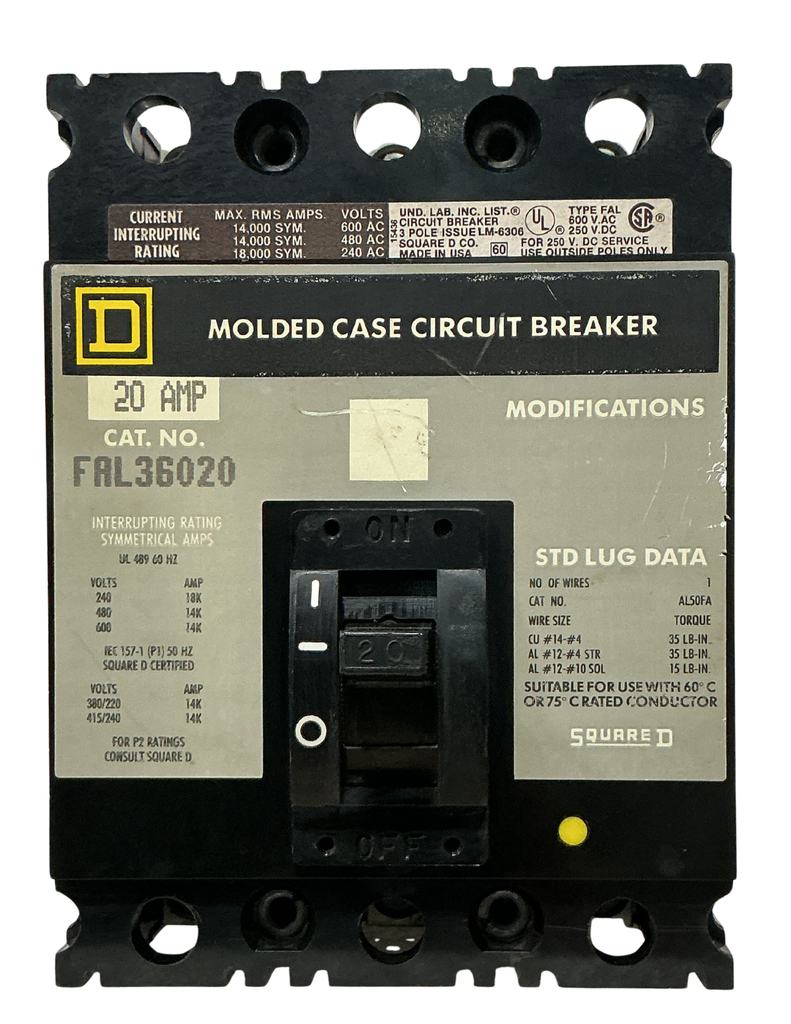

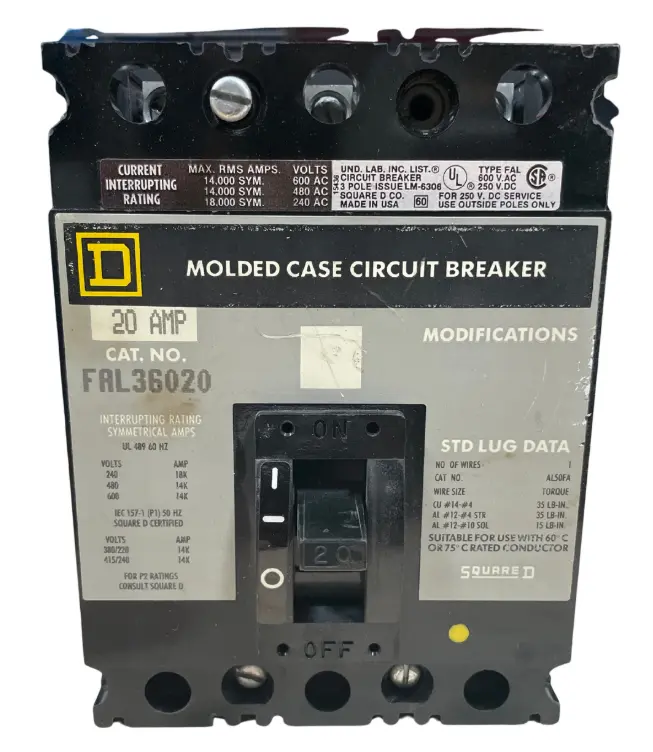

FAL36020-U
FA/LA MOLDED CASE CIRCUIT BREAKER 600V, 20A, 3P
Specifications
| part_number | FAL36020-U |
| manufacturer | Schneider Electric |
| brand | Square D |
| series | FAL |
| product_type | Molded Case Circuit Breaker |
| polarity | 3-Pole |
| amperage_rating | 20 Amps |
| voltage_rating | 600 VAC |
| interrupting_rating | 18 kA @ 480 VAC |
| mounting_type | Unit Mount |
| trip_unit | Thermal Magnetic |
| frame_size | 100A |
| terminal_type | Line and Load Lugs |
| frequency_rating | 50/60 Hz |
| phase | 3 |
| certifications | UL Listed, CSA Certified |
| dimensions | 6.47 in H x 4.12 in W x 4.06 in D |
| operating_temperature | -25°C to +40°C |
| wire_range | 14-1/0 AWG (copper/aluminum) |
| application | Panelboards, Switchboards, Distribution Systems |
| environmental_rating | Indoor |
| country_of_origin | USA |
