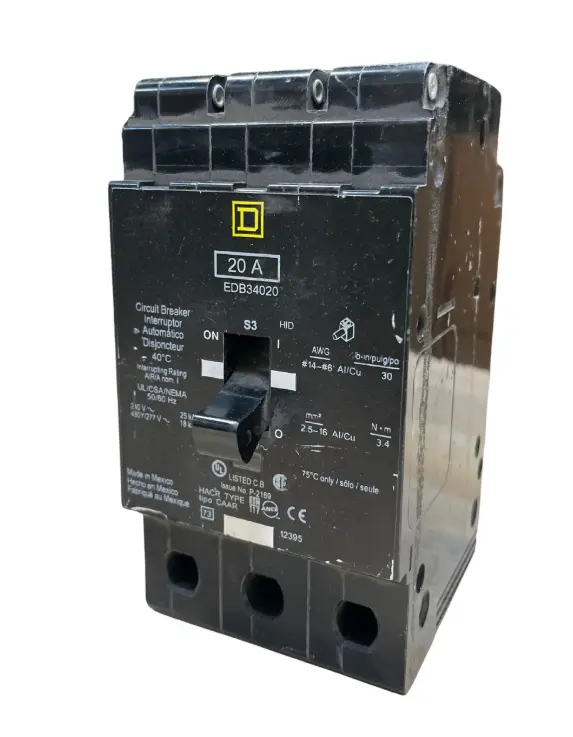

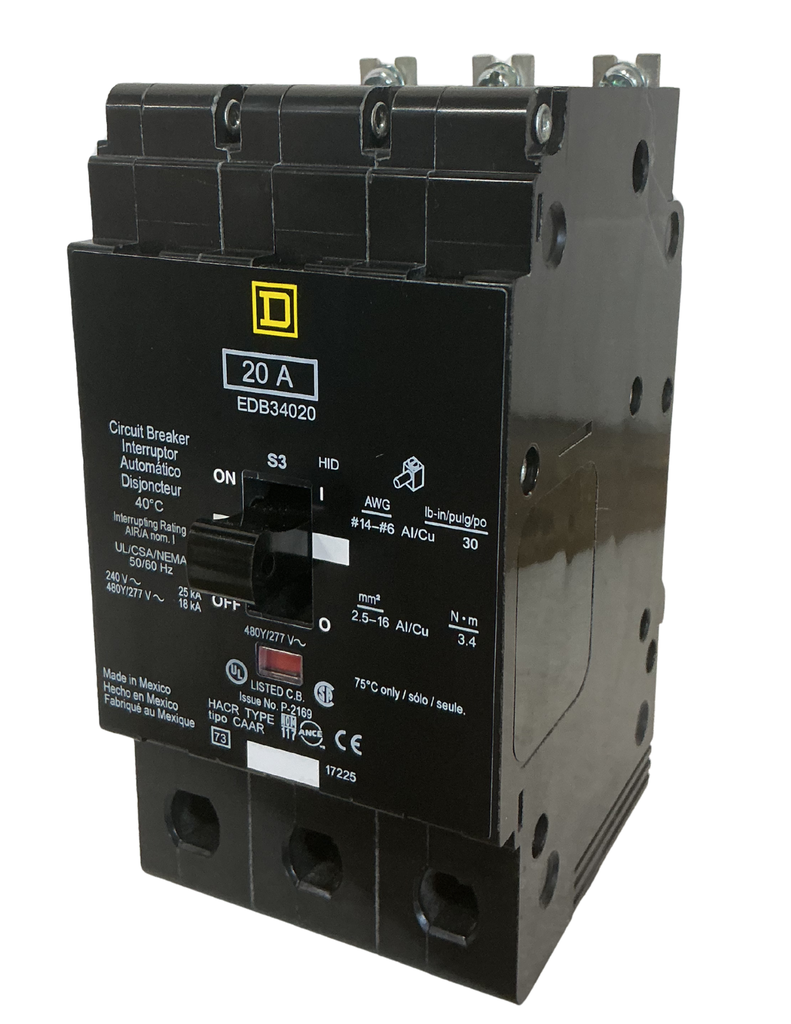

EDB34020
Mini circuit breaker, E-Frame, 20A, 3 pole, 480Y/277 VAC, 25 kA max, bolt on
Specifications
| part_number | EDB34020 |
| manufacturer | Schneider Electric |
| brand | Square D |
| product_type | Molded Case Circuit Breaker |
| series | EDB |
| frame_type | EDB |
| number_of_poles | 3 |
| amp_rating | 20 |
| voltage_rating | 480Y/277 VAC |
| interrupting_rating | 18 kA |
| trip_type | Thermal Magnetic |
| mounting_type | Bolt-On |
| frequency | 50/60 Hz |
| terminal_type | Line/Load Lug |
| approval_certifications | UL Listed, CSA Certified |
| wire_size | 14-6 AWG Cu/Al |
| dimensions | 5.66 in x 4.12 in x 3.56 in |
| weight | 4 lbs |
| phase | 3 |
| application | Panelboards, Switchboards |
| operating_temperature | -25°C to 40°C |
| country_of_origin | USA |
