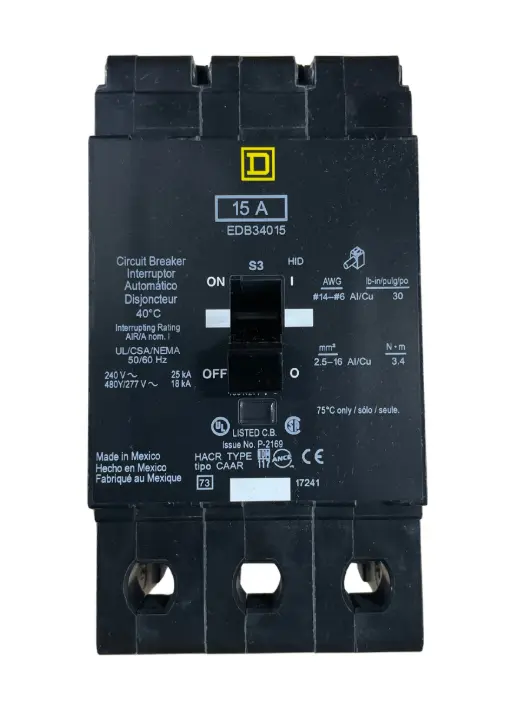

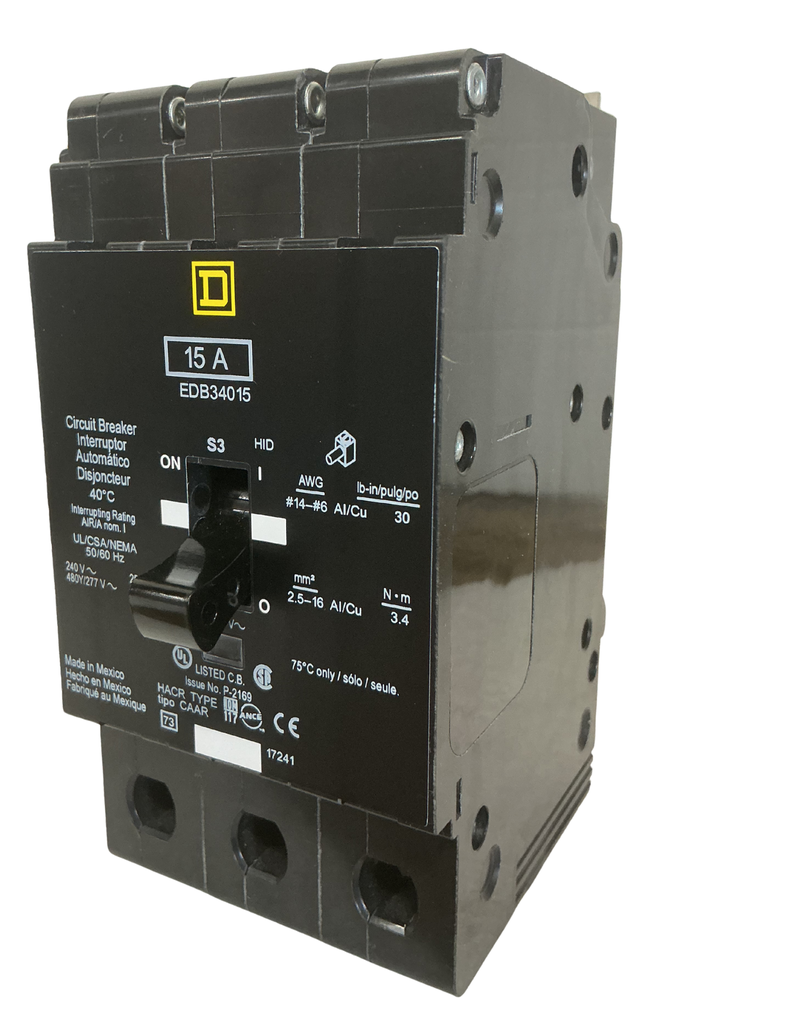

EDB34015
Mini circuit breaker, E-Frame, 15A, 3 pole, 480Y/277 VAC, 25 kA max, bolt on
Specifications
| part_number | EDB34015 |
| manufacturer | Schneider Electric |
| brand | Square D |
| product_type | Molded Case Circuit Breaker |
| series | EDB |
| number_of_poles | 3 |
| amperage_rating | 15 A |
| voltage_rating | 480 V AC |
| interrupting_rating | 18 kA @ 480 V AC |
| mounting_style | Bolt-On |
| terminal_type | Lug |
| trip_unit_type | Thermal Magnetic |
| frame_type | E-Frame |
| frequency_rating | 50/60 Hz |
| phase | 3 |
| certifications | UL Listed, CSA Certified |
| application | Panelboards, Switchboards |
| operating_temperature | -25°C to 40°C |
| country_of_origin | USA |
| environment | Indoor |
| dimensions | 6.31 in (H) x 4.12 in (W) x 3.38 in (D) |
| weight | 4 lbs |
| color | Black |
| RoHS_compliance | Yes |
