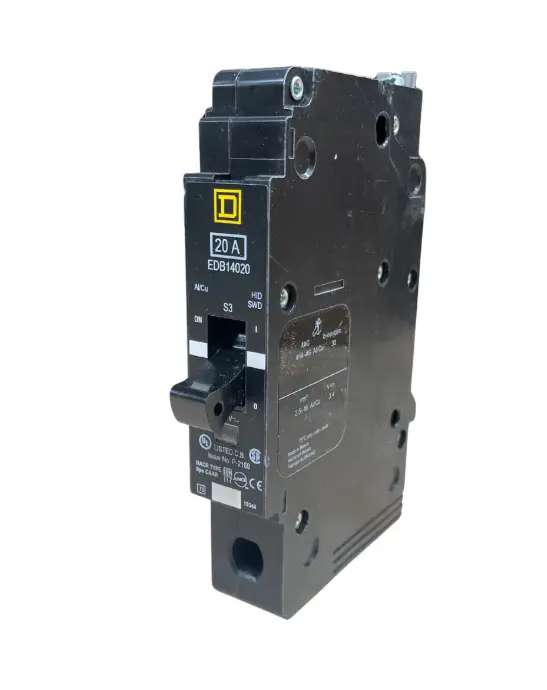

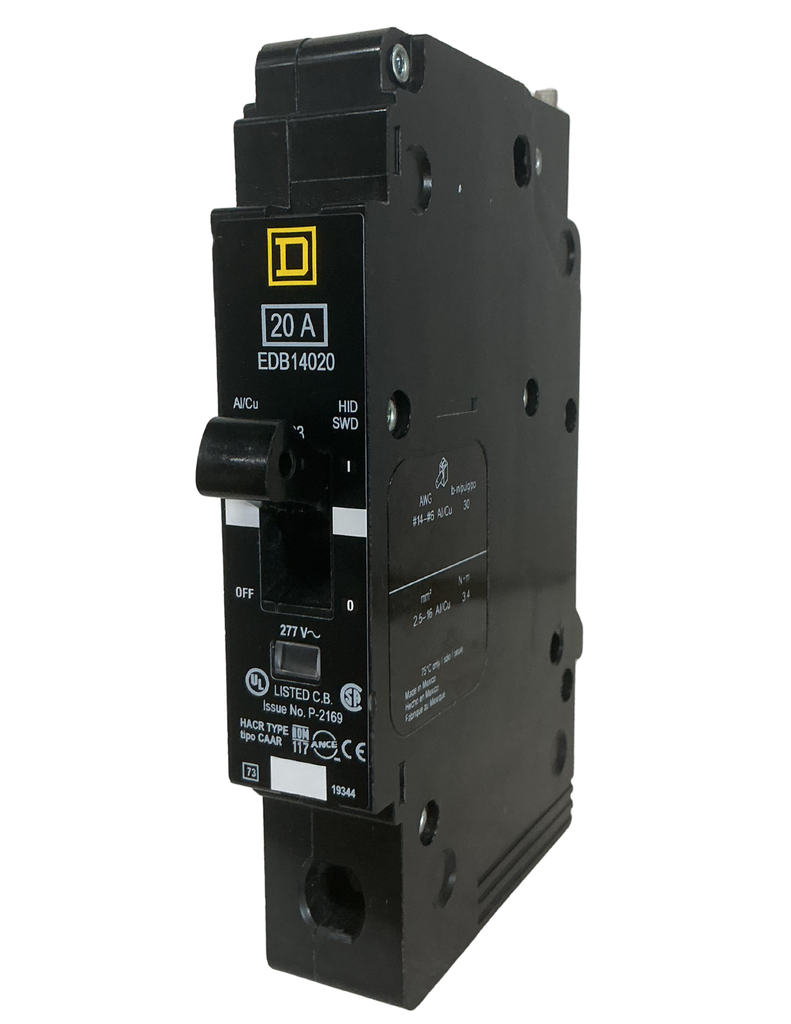

EDB14020
1P 20 A 277 V bolt‑on E‑frame breaker
Specifications
| part_number | EDB14020 |
| manufacturer | Schneider Electric |
| brand | Square D |
| product_type | Circuit Breaker |
| family | EDB |
| frame_size | 125A |
| voltage_rating | 277/480V AC |
| amperage_rating | 20A |
| interrupting_rating | 18 kAIC |
| number_of_poles | 1 |
| mounting_type | Bolt-On |
| trip_unit | Thermal Magnetic |
| frequency_rating | 50/60 Hz |
| phase | 1 |
| wire_size | 14-2 AWG (Cu/Al) |
| dimensions | 6.30 x 1.00 x 3.00 inches |
| certifications | UL Listed, CSA Certified |
| application | Panelboards, Commercial, Industrial |
| connection_type | Line and Load Lugs |
| color | Black |
| environment | Indoor |
| operating_temperature | -25°C to 40°C |
| country_of_origin | USA |
| status | Active |
