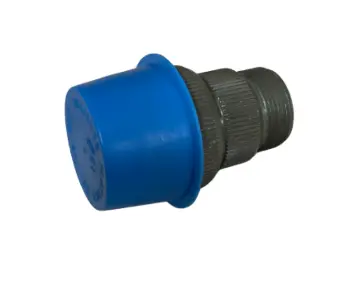

CIR06A-18-22SW-F80
Straight Plug Connector 3 Pin
Specifications
| part_number | CIR06A-18-22SW-F80 |
| series | CIR |
| product_type | Circular Connector |
| shell_size | 18 |
| contact_arrangement | 22 |
| contact_type | Socket |
| number_of_contacts | 22 |
| shell_style | Straight Plug |
| mounting_type | Free Hanging |
| termination_style | Solder |
| contact_material | Copper Alloy |
| contact_finish | Gold |
| body_material | Aluminum Alloy |
| body_finish | Olive Drab Cadmium |
| coupling_type | Bayonet |
| current_rating | 13A |
| voltage_rating | 500V |
| insulation_resistance | 5000 MΩ |
| operating_temperature_min | -55°C |
| operating_temperature_max | 125°C |
| environmental_sealing | IP67 |
| shielding | Unshielded |
| orientation | Standard Key |
| manufacturer | ITT Cannon |
| rohs_compliance | No |
| connector_series | MIL-DTL-5015 Equivalent |
| mating_cycles | 500 |
| flammability_rating | UL94 V-0 |
| color | Olive Drab |
| inserts | Thermoset |
| certifications | MIL Spec |
| fastening_type | Bayonet Lock |
| product_weight | 55g |
