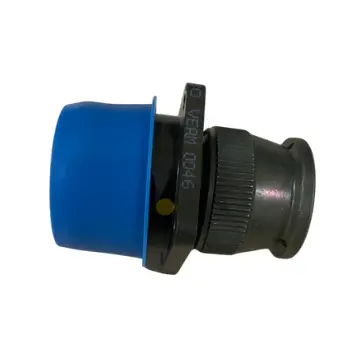

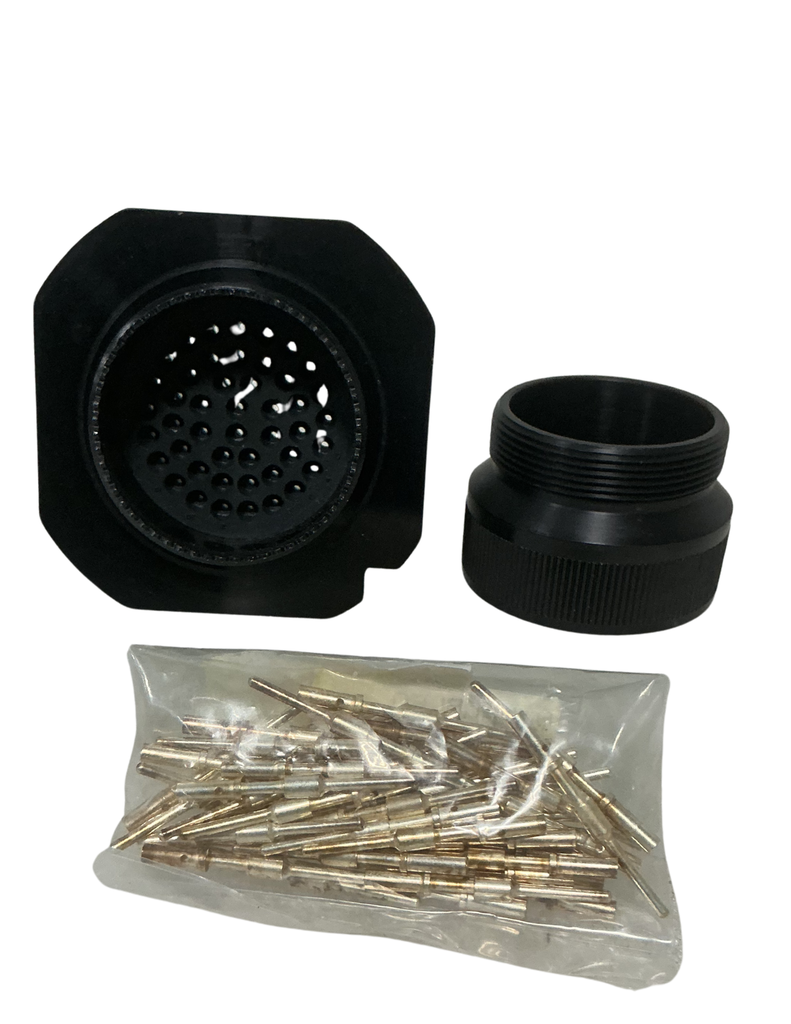

CIR00RV-18-22P-F80
Stnadard Circular Connector , CIR00RV-18-22P-F80
Specifications
| part_number | CIR00RV-18-22P-F80 |
| manufacturer | ITT Cannon |
| series | CIR |
| contact_arrangement | 18-22 |
| number_of_contacts | 22 |
| contact_type | Pin |
| connector_type | Circular Connector |
| shell_style | Receptacle |
| mounting_type | Flange |
| coupling_method | Bayonet |
| shell_size | 18 |
| shell_material | Aluminum Alloy |
| shell_finish | Olive Drab Cadmium |
| contact_material | Copper Alloy |
| contact_finish | Gold |
| current_rating | 13A |
| voltage_rating | 600V |
| termination_style | Solder |
| operating_temperature | -55°C to +125°C |
| environmental_sealing | IP67 |
| mating_cycle | 500 |
| orientation | Normal |
| insulation_resistance | 5000 MΩ |
| rohs_compliance | Yes |
| connector_standard | MIL-DTL-5015 (Derived) |
