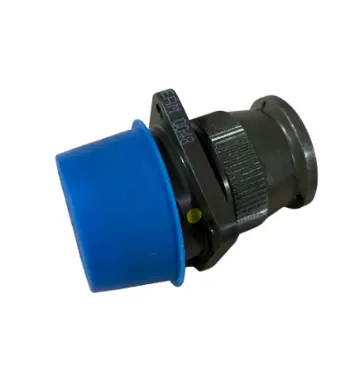

CIR00RV-18-20SW-F80
Standard Circular Connector , CIE00RV-18-20SW-F80
Specifications
| part_number | CIR00RV-18-20SW-F80 |
| series | CIR |
| connector_type | Circular Connector |
| shell_style | Receptacle |
| coupling_type | Bayonet |
| shell_size | 18 |
| contact_layout | 20S |
| contact_type | Socket |
| number_of_contacts | 20 |
| mounting_type | Flange |
| mounting_feature | Four Hole Flange |
| orientation | Standard |
| contact_material | Copper Alloy |
| contact_finish | Gold Plated |
| shell_material | Aluminum Alloy |
| shell_finish | Olive Drab Cadmium |
| insulation_material | Thermoplastic |
| current_rating | 7.5A |
| voltage_rating | 600V |
| operating_temperature | -55°C to +125°C |
| waterproof_rating | IP67 |
| mating_cycles | 500 |
| manufacturer | ITT Cannon |
| application | Industrial, Military, Aerospace |
| environmental_resistance | Vibration, Moisture, Dust |
| termination_style | Crimp |
| color | Olive Drab |
| compliance | RoHS |
| keying | Polarized |
| flame_rating | UL94 V-0 |
