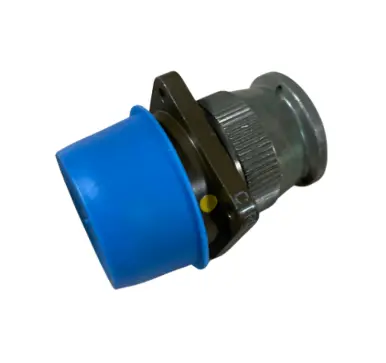

CIR00RV-18-20S-F80
Standard Circular Connector , CIE00RV-18-20S-F80
Specifications
| part_number | CIR00RV-18-20S-F80 |
| manufacturer | ITT Cannon |
| product_type | Circular Connector |
| series | CIR |
| shell_size | 18 |
| contact_arrangement | 20S |
| contact_type | Socket |
| mounting_style | Cable |
| shell_finish | F80 (Nickel Plated Aluminum) |
| number_of_contacts | 20 |
| current_rating | 13A |
| voltage_rating | 600V |
| termination_style | Crimp |
| coupling_method | Bayonet |
| shell_material | Aluminum Alloy |
| insert_material | Thermoplastic |
| operating_temperature_range | -55°C to +125°C |
| environmental_protection | IP67 |
| keying | Standard |
| connector_class | Standard |
| contact_material | Copper Alloy |
| contact_plating | Gold |
| insulation_resistance | 5000 MΩ |
| mating_cycles | 500 |
| product_status | Active |
| compliance | RoHS |
