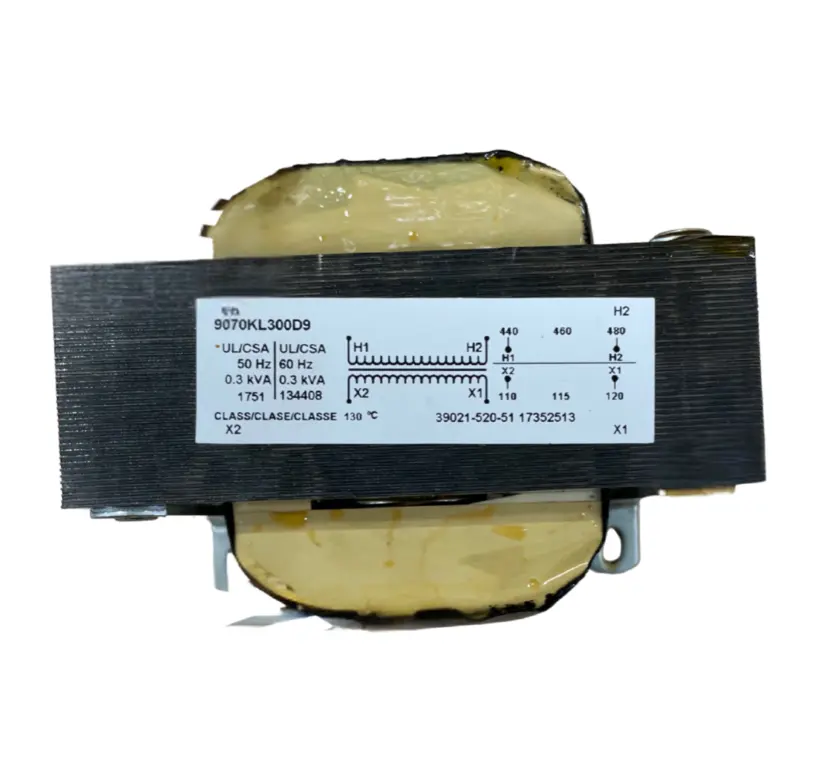

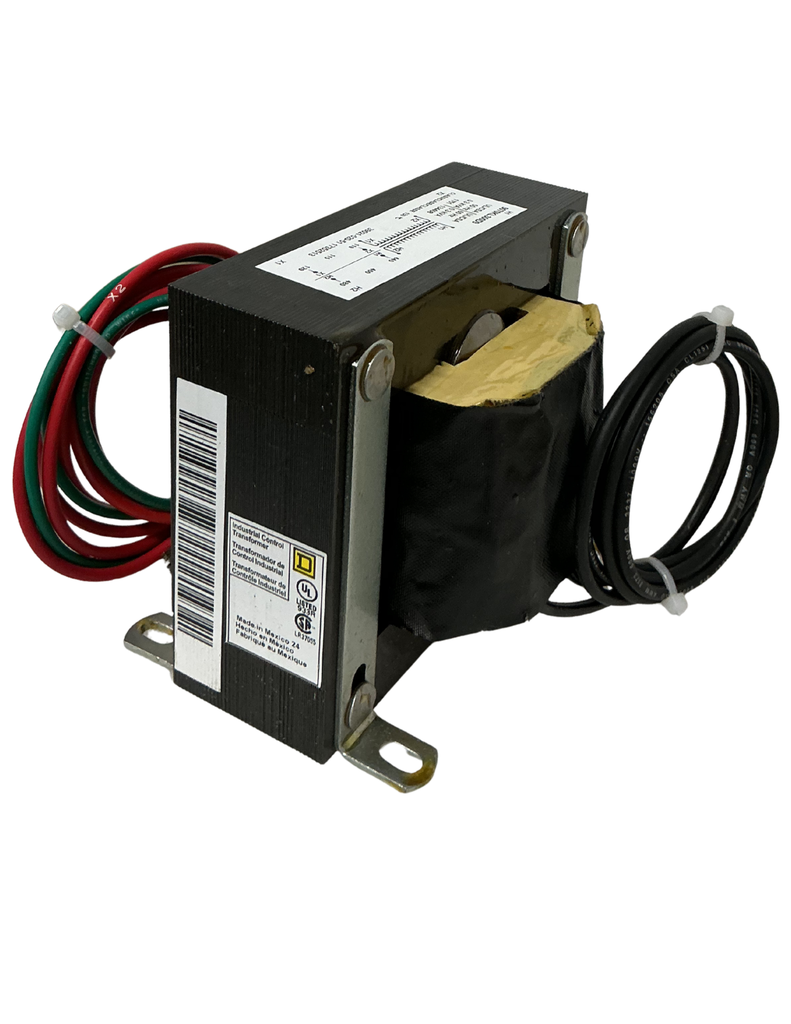

9070KL300D9
9070KL300D9 control transformer, 300 VA, 480 V→120 V
Specifications
| part_number | 9070KL300D9 |
| product_type | Industrial Control Transformer |
| manufacturer | Square D |
| primary_voltage | 240/480 V |
| secondary_voltage | 120 V |
| power_rating | 300 VA |
| frequency | 50/60 Hz |
| phase | Single |
| mounting_type | Panel Mount |
| dimensions | 4.8 in H x 4.13 in W x 4.35 in D |
| insulation_class | Class B |
| operating_temperature | -20°C to 40°C |
| enclosure_type | Open |
| standards | UL Listed, CSA Certified, CE Marked |
| application | Control Circuit Isolation |
| weight | 8.4 lbs |
| winding_material | Copper |
| terminals | Screw Clamp |
| country_of_origin | Mexico |
