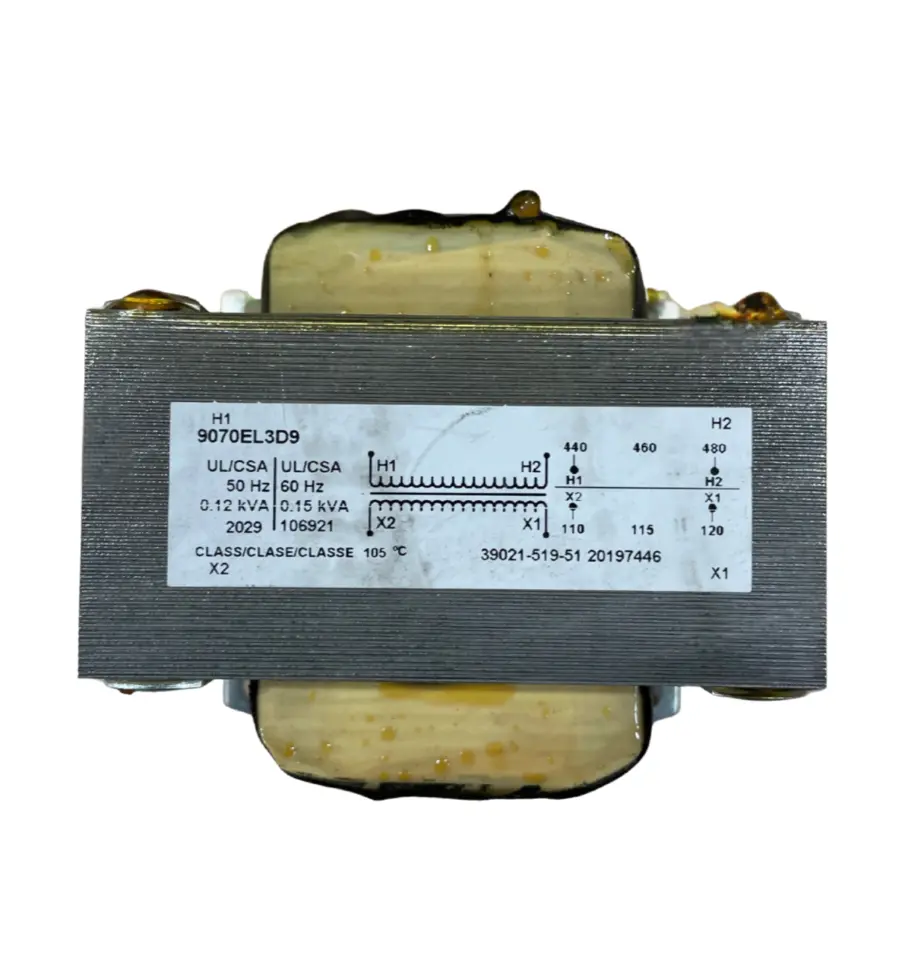

9070EL3D9-U
9070EL3D9 150 VA transformer, 480→120 V
Specifications
| part_number | 9070EL3D9-U |
| manufacturer | Schneider Electric |
| product_type | Industrial Control Transformer |
| primary_voltage | 240/480 V AC |
| secondary_voltage | 120 V AC |
| power_rating | 1000 VA |
| frequency | 50/60 Hz |
| mounting_type | Panel Mount |
| phase | Single Phase |
| enclosure | Open Type |
| terminal_type | Screw Terminal |
| dimensions | 4.81 x 5.62 x 6.25 inches |
| weight | 25 lbs |
| certifications | UL Listed, CSA Certified |
| operating_temperature | -20°C to +40°C |
| country_of_origin | Mexico |
| application | Industrial Control Panel |
| input_current | 4.2/2.1 A |
| output_current | 8.33 A |
| winding_material | Copper |
