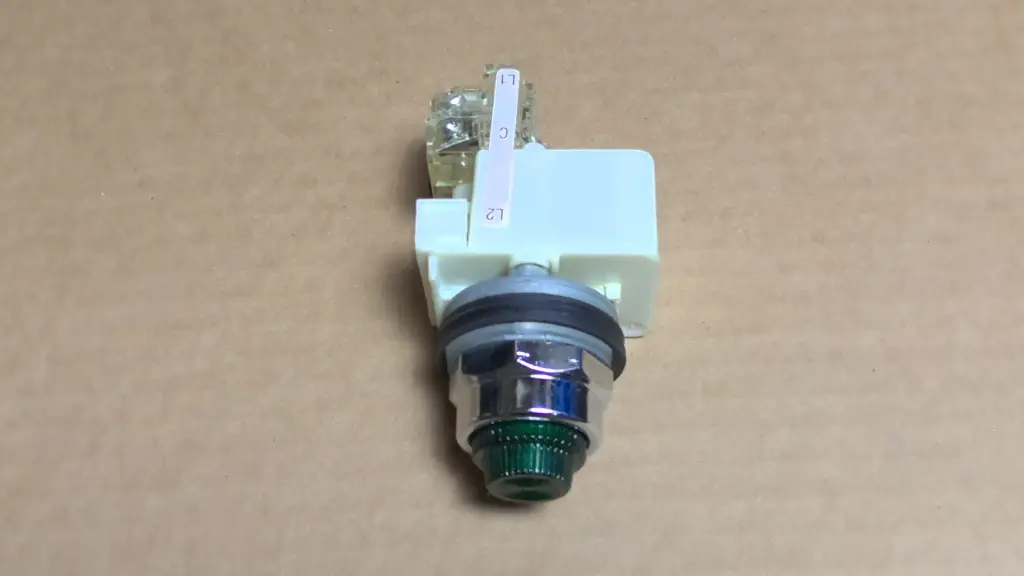

9001KT38LGG31
Push-to-test pilot light, Harmony 9001K, metal, polycarbonate, fresnel lens, green, 30mm, LED green, 120V
Specifications
| part_number | 9001KT38LGG31 |
| manufacturer | Schneider Electric |
| series | 9001K |
| product_type | Pilot Light |
| operator_type | Illuminated Push Button |
| mounting_diameter | 30 mm |
| illumination | Green LED |
| voltage_rating | 120 VAC |
| contact_configuration | 1 NO |
| lens_color | Green |
| actuator_type | Extended |
| bezel_material | Metal |
| bezel_finish | Chrome Plated |
| enclosure_rating | NEMA 1, 2, 3, 4, 4X, 6, 12, 13 |
| standards_met | UL, CSA, CE |
| application | Industrial Control Panels |
| terminal_type | Screw Clamp |
| lamp_type | LED |
| country_of_origin | USA |
