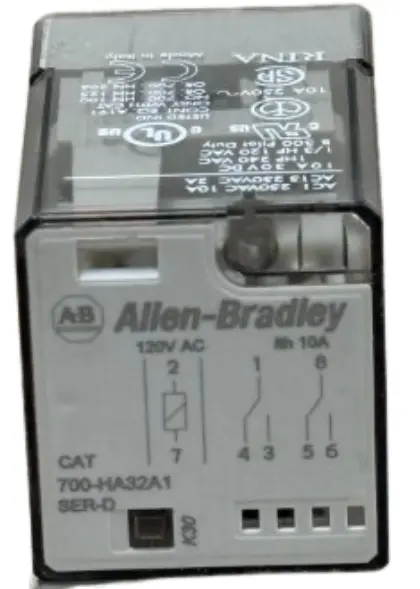

700-HA32A1
GP Tube Base Relay,10 Amp standard Contact,10 Amp Standard Contact,120V 50/60Hz,2 Changeover Contacts (DPDT),No Additional Options
Specifications
| part_number | 700-HA32A1 |
| product_type | General Purpose Relay |
| coil_voltage | 120 VAC |
| contact_configuration | DPDT (Double Pole Double Throw) |
| contact_rating | 10A at 300 VAC or 28 VDC |
| mounting_type | DIN Rail or Panel Mount |
| termination_style | Screw Terminals |
| coil_resistance | 9710 Ohms |
| operating_temperature_range | -40°C to +55°C |
| manufacturer | Allen-Bradley |
| enclosure_rating | IP20 |
| indication | Mechanical Flag |
| dimensions | 35mm x 70mm x 85mm |
| standards_met | UL, CSA, CE |
| application | Industrial Automation, Control Panels |
