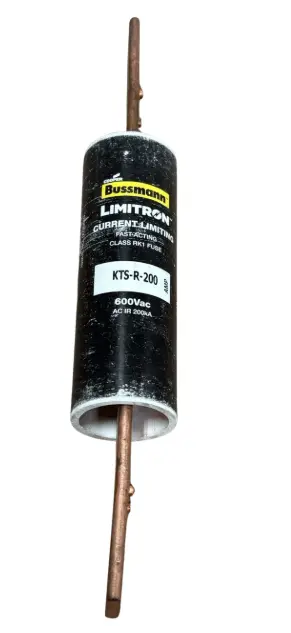

KTS-R-200
Eaton Bussmann series KTS-R fuse, 70/30 brass end cap, Panelboards, 200 A, 1, Class RK1, Non-indicating, Blade end x blade end, 200 kAIC at 600 Vac, Melamine glass tube, Standard, 600 V
Specifications
| part_number | KTS-R-200 |
| product_type | Electrical Fuse |
| fuse_type | Time Delay |
| current_rating | 200 Amps |
| voltage_rating | 600 Volts AC |
| interrupting_rating | 200,000 Amps AC |
| body_material | Fiberglass Tube |
| end_cap_material | Tin-plated Copper |
| dimensions | 13 x 2.38 inches |
| mounting_type | Bolt-on |
| operating_temperature_range | -40°C to 85°C |
| compliance | UL Listed, CSA Certified |
| typical_applications | Electrical Distribution, Motor Circuits, Switchboards |
| manufacturer | Littelfuse |
| series | KTS-R |
| weight | 5.3 lbs |
| country_of_origin | Mexico |
