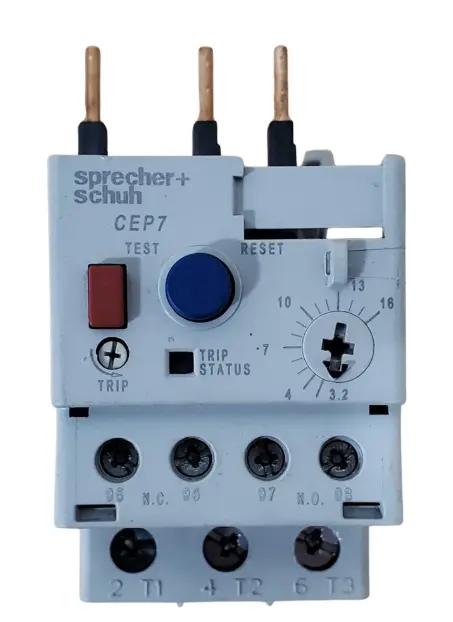

CEP7-EEDB-U
SOLID STATE OVERLOAD RELAY CEP7 DIRECT MOUNT AUTOMATIC/MANUAL RESET 3 PHASE TRIP CLASS 10/15/20/30 3.2-16 AMP ADJUSTMENT RANGE
Specifications
| part_number | CEP7-EEDB-U |
| product_type | Motor Protection Relay |
| manufacturer | Eaton |
| series | CEP7 |
| current_range | 45-60 Amps |
| control_voltage | 24-240V AC/DC |
| mounting_type | DIN Rail |
| trip_class | 10 |
| phase_loss_protection | Yes |
| reset_type | Manual/Automatic |
| device_type | Electronic Overload Relay |
| operating_frequency | 50/60 Hz |
| auxiliary_contacts | 1 NO + 1 NC |
| application | Motor Overload Protection |
| short_circuit_protection | Requires external protection |
| recommended_fuse_size | 63 Amps |
| ambient_temperature_range | -20°C to +60°C |
| standards | UL, CSA, CE, IEC |
| enclosure_rating | IP20 |
| dimensions_mm | 45 x 96 x 116 |
| weight_kg | 0.3 |
